XC6221B181MR-G - Torex

Description: LDO Voltage Regulators

Download XC6221B181MR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

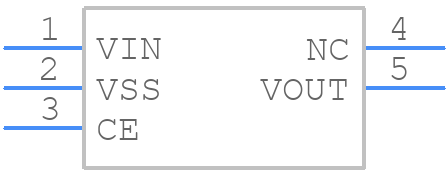

Symbol
XC6221B181MR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC6221B181MR-G - Torex PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT-25 (unit: mm)
click to zoom
3D Models
XC6221B181MR-G - Torex - 3D model - SOT23 (5-Pin) - SOT-25 (unit: mm)
click to zoom

XC6221B181MR-G Details

  • Manufacturer Part Number:

    XC6221B181MR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-25, 5 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    7

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.21 V

  • Dropout Voltage1-Nom:

    0.125 V

  • Input Voltage Absolute-Max:

    6.5 V

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.3 V

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Line Regulation-Max:

    0.01332%

  • Load Regulation-Max(%):

    0.04%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.25 A

  • Output Voltage1-Max:

    1.82 V

  • Output Voltage1-Min:

    1.78 V

  • Output Voltage1-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.3 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Voltage Tolerance-Max:

    1.11%

  • Width:

    1.6 mm

XC6221B181MR-G Frequently Asked Questions (FAQs)

  • Torex provides a recommended PCB layout in their application note AN042, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The output capacitor selection depends on the output voltage, output current, and ripple requirements. Torex recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage. Refer to the datasheet and application notes for more information.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, it's recommended to derate the device's performance at high temperatures. For reliable operation, it's suggested to keep the ambient temperature below 70°C to ensure optimal performance and longevity.
  • Yes, XC6221B181MR-G is designed to withstand vibrations up to 10G (10Hz to 2kHz). However, it's essential to ensure proper PCB mounting and component soldering to prevent mechanical stress and damage. Consult Torex's application notes and reliability reports for more information.
  • Start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component selection, and soldering. Consult the datasheet, application notes, and Torex's technical support resources for troubleshooting guides and FAQs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC6221B181MR-G Overview

Use the download button to access the XC6221B181MR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC622, or try a keyword search, such as Linear Regulator ICs
