The maximum operating frequency of the XC6SLX75-2CSG484I is 350 MHz.
The XC6SLX75-2CSG484I has approximately 74,400 logic cells.
The typical power consumption of the XC6SLX75-2CSG484I is around 1.2W, but it can vary depending on the design and operating conditions.
Yes, the XC6SLX75-2CSG484I supports partial reconfiguration, which allows for dynamic reconfiguration of specific regions of the FPGA.
The maximum bandwidth of the XC6SLX75-2CSG484I's transceivers is 6.25 Gbps.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC6SLX75-2CSG484I Overview

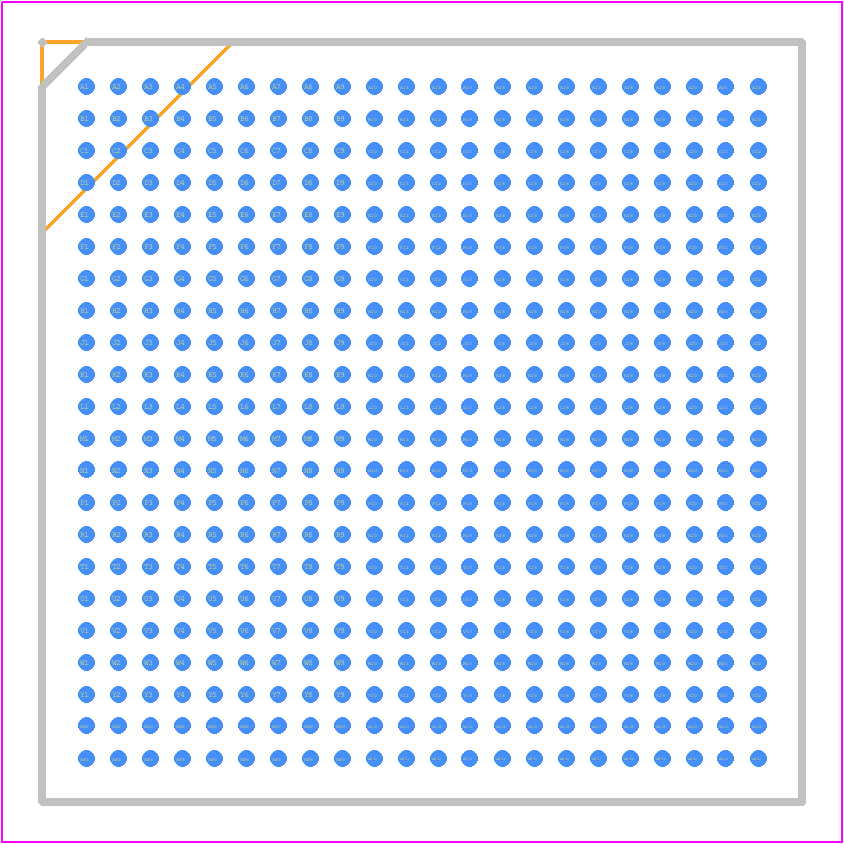

Use the download button to access the XC6SLX75-2CSG484I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC6SL,
or try a keyword search, such as Field Programmable Gate Arrays
