XC7K325T-L2FFG676I - AMD

Description: Kintex®-7 Field Programmable Gate Array (FPGA) IC 400 16404480 326080 676-BBGA, FCBGA

Download XC7K325T-L2FFG676I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

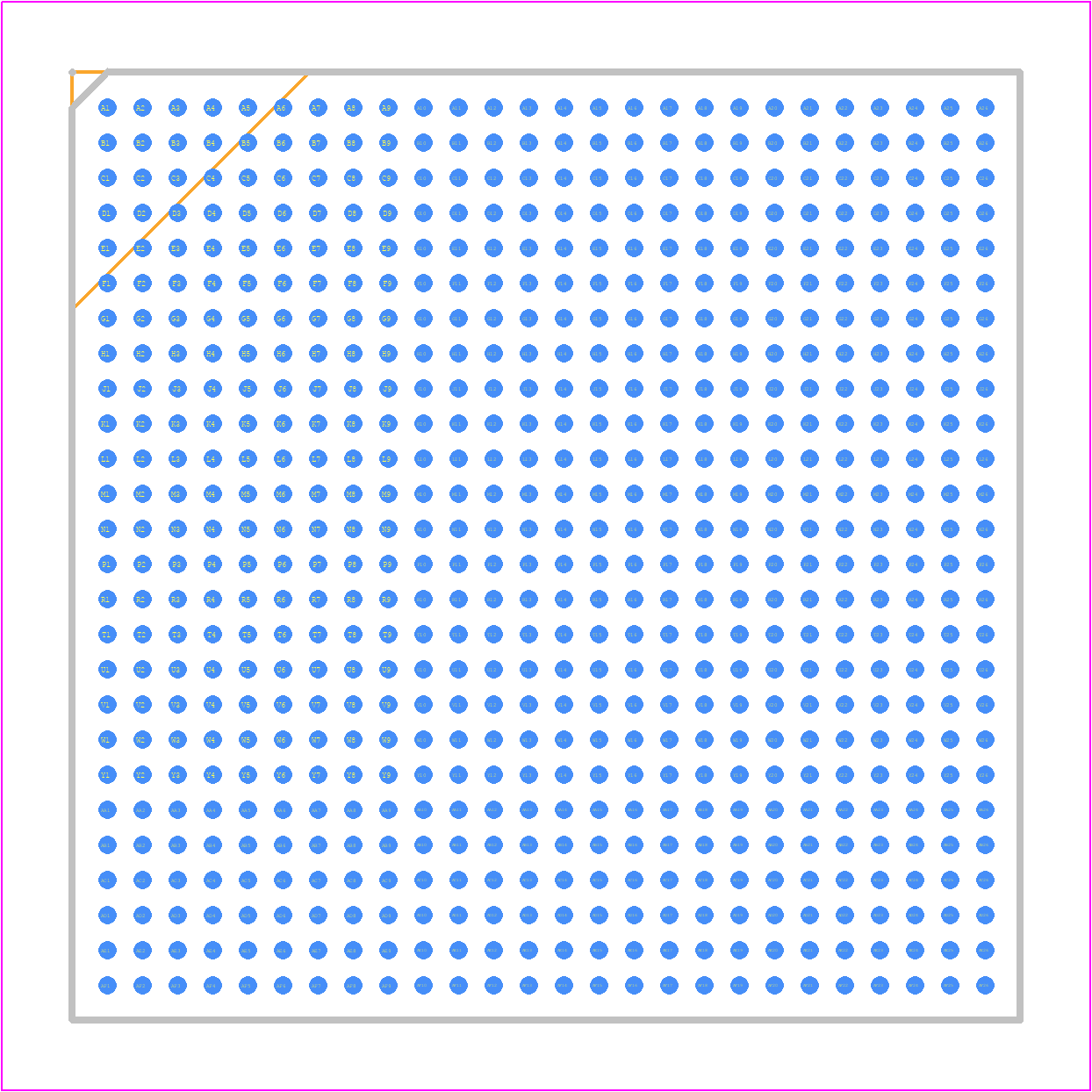

XC7K325T-L2FFG676I - AMD PCB footprint - BGA - BGA - FG(G)676
click to zoom
3D Models
XC7K325T-L2FFG676I - AMD  - 3D model - BGA - FG(G)676
click to zoom

XC7K325T-L2FFG676I Details

  • Manufacturer Part Number:

    XC7K325T-L2FFG676I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-676

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    13

  • Clock Frequency-Max:

    1818 MHz

  • Combinatorial Delay of a CLB-Max:

    0.25 ns

  • JESD-30 Code:

    S-PBGA-B676

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    4

  • Number of CLBs:

    25475

  • Number of Inputs:

    400

  • Number of Outputs:

    400

  • Number of Terminals:

    676

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    25475 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA676,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    250

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    3.37 mm

  • Supply Voltage-Max:

    0.97 V

  • Supply Voltage-Min:

    0.93 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    27 mm

XC7K325T-L2FFG676I Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the XC7K325T-L2FFG676I is 500 MHz.
  • You can implement a DDR3 memory interface using the MIG (Memory Interface Generator) tool provided by Xilinx. The tool generates a customized IP core for the DDR3 interface.
  • The power consumption of the XC7K325T-L2FFG676I depends on the operating frequency, voltage, and design complexity. However, the typical power consumption is around 10-15W.
  • Yes, the XC7K325T-L2FFG676I supports high-speed serial interfaces like PCIe Gen3 and SATA III. You can use the GTX transceivers to implement these interfaces.
  • You can use the Xilinx Vivado Design Suite, which provides a comprehensive development environment for designing, debugging, and verifying your FPGA design. You can also use the ChipScope Pro tool for on-chip debugging.
