XC7S25-1FTGB196C - AMD

Description: XILINX - XC7S25-1FTGB196C - FPGA, SPARTAN-7, 100 I/O, FCBGA-196

Download XC7S25-1FTGB196C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

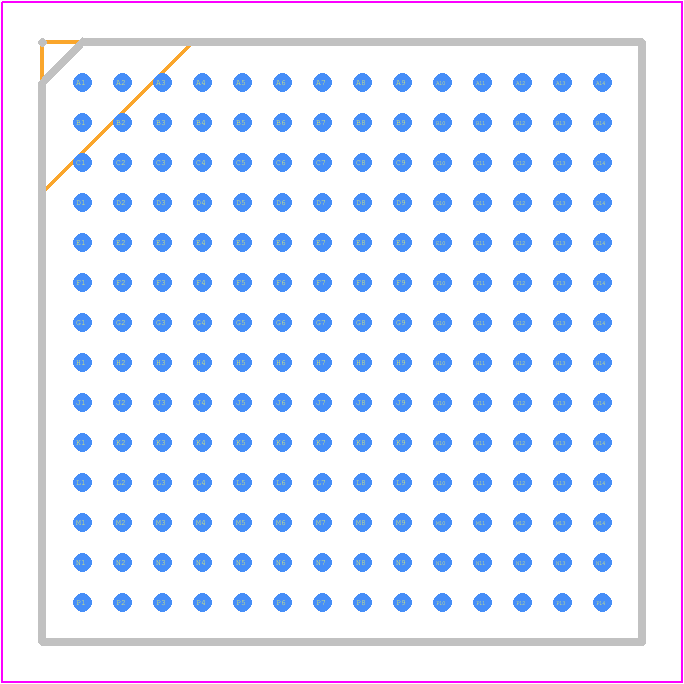

XC7S25-1FTGB196C - AMD PCB footprint - BGA - BGA - FTGB196 (Spartan-7 FPGAs) Wire-Bond Chip-Scale BGA (1.0 mm Pitch)
click to zoom
3D Models
XC7S25-1FTGB196C - AMD  - 3D model - BGA - FTGB196 (Spartan-7 FPGAs) Wire-Bond Chip-Scale BGA (1.0 mm Pitch)
click to zoom

XC7S25-1FTGB196C Details

  • Manufacturer Part Number:

    XC7S25-1FTGB196C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-196

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Clock Frequency-Max:

    1098 MHz

  • Combinatorial Delay of a CLB-Max:

    1.27 ns

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e3

  • Length:

    15 mm

  • Number of CLBs:

    1825

  • Number of Inputs:

    150

  • Number of Logic Cells:

    23360

  • Number of Outputs:

    150

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1825 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA196,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm
