XC7S6-2CPGA196I - AMD

Description: FPGA - Field Programmable Gate Array

Download XC7S6-2CPGA196I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

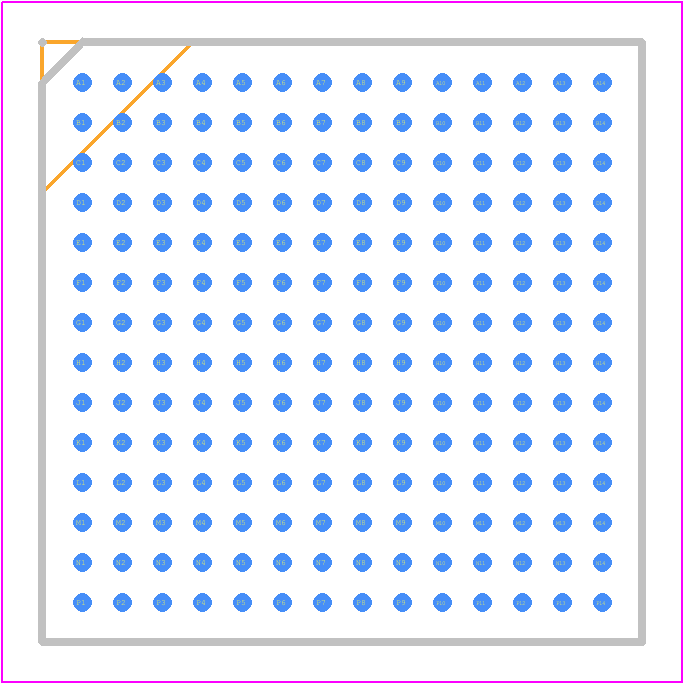

XC7S6-2CPGA196I - AMD PCB footprint - BGA - BGA - XC7S6-2CPGA196I
click to zoom
3D Models
XC7S6-2CPGA196I - AMD  - 3D model - BGA - XC7S6-2CPGA196I
click to zoom

XC7S6-2CPGA196I Details

  • Manufacturer Part Number:

    XC7S6-2CPGA196I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-196

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Clock Frequency-Max:

    1286 MHz

  • Combinatorial Delay of a CLB-Max:

    1.05 ns

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e1

  • Length:

    8 mm

  • Number of CLBs:

    469

  • Number of Inputs:

    100

  • Number of Logic Cells:

    6000

  • Number of Outputs:

    100

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    469 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA196,14X14,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    8 mm

XC7S6-2CPGA196I Frequently Asked Questions (FAQs)

  • The maximum operating frequency of XC7S6-2CPGA196I is 340 MHz.
  • The XC7S6-2CPGA196I has approximately 6,800 logic cells.
  • The typical power consumption of XC7S6-2CPGA196I is around 1.2W, but it can vary depending on the design and operating conditions.
  • Yes, XC7S6-2CPGA196I supports DDR3 memory interface, as well as other memory interfaces like DDR2, DDR, and QDR II+.
  • Yes, XC7S6-2CPGA196I has built-in support for high-speed serial interfaces like PCIe Gen2 and SATA II, making it suitable for applications requiring high-speed data transfer.
