XC7VX690T-2FFG1157I - AMD

XC7VX690T-2FFG1157I Details

• Manufacturer Part Number:

  XC7VX690T-2FFG1157I

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

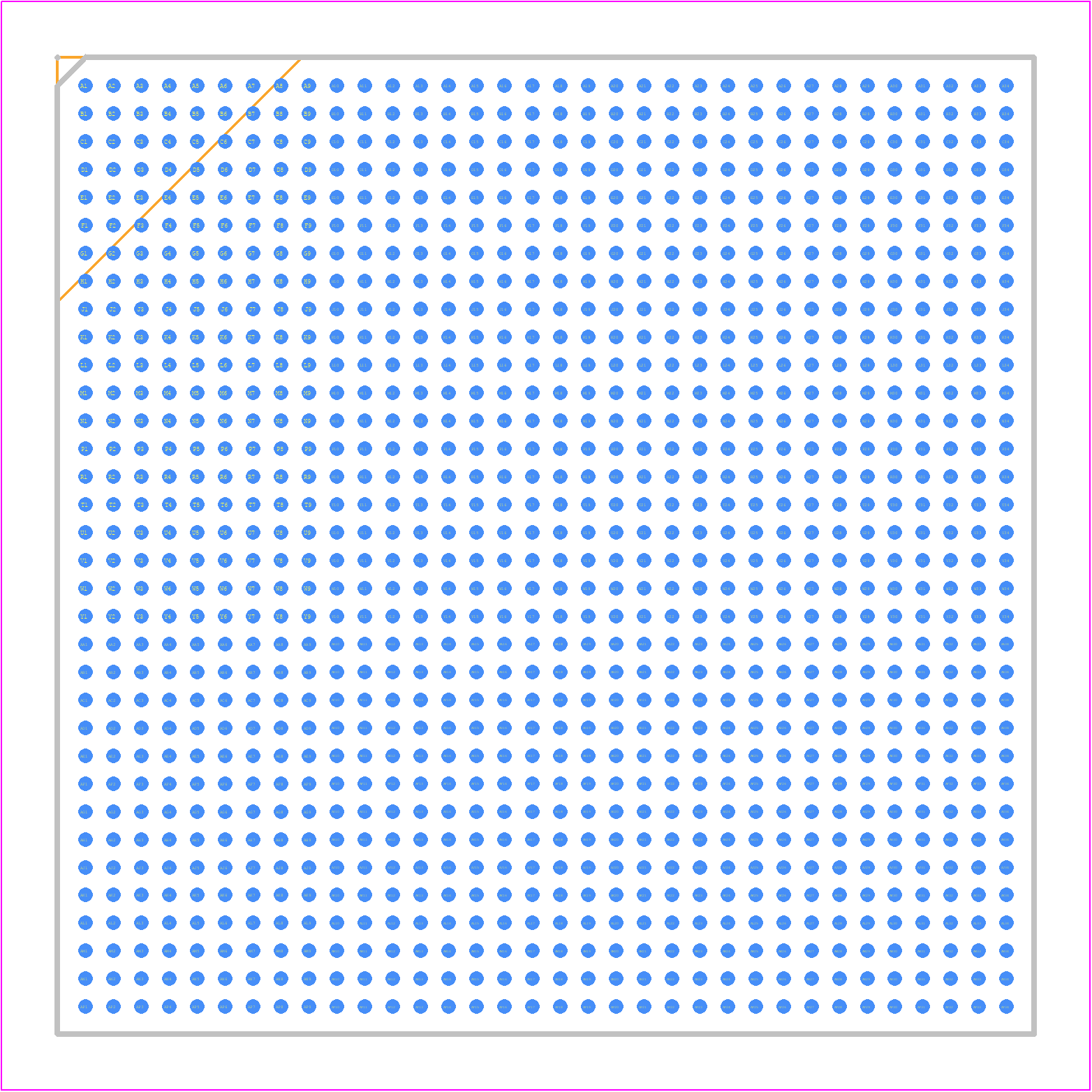

• Package Description:

  BGA-1157

• HTS Code:

  8542.31.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  AMD

• YTEOL:

  14

• Clock Frequency-Max:

  1818 MHz

• Combinatorial Delay of a CLB-Max:

  0.61 ns

• JESD-30 Code:

  S-PBGA-B1157

• JESD-609 Code:

  e1

• Length:

  35 mm

• Number of CLBs:

  54150

• Number of Inputs:

  600

• Number of Logic Cells:

  693120

• Number of Outputs:

  600

• Number of Terminals:

  1157

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  54150 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA1156,34X34,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.35 mm

• Supply Voltage-Max:

  1.03 V

• Supply Voltage-Min:

  0.97 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS, 28 nm

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  35 mm
