XC7VX690T-2FFG1927C - AMD

Description: XILINX - XC7VX690T-2FFG1927C - FPGA, Virtex-7, MMCM, PLL, 600 I/O's, 710 MHz, 693120 Cells, 970 mV to 1.03 V, FCBGA-1927

Download XC7VX690T-2FFG1927C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XC7VX690T-2FFG1927C - AMD - PCB symbol
click to zoom
PCB Footprints

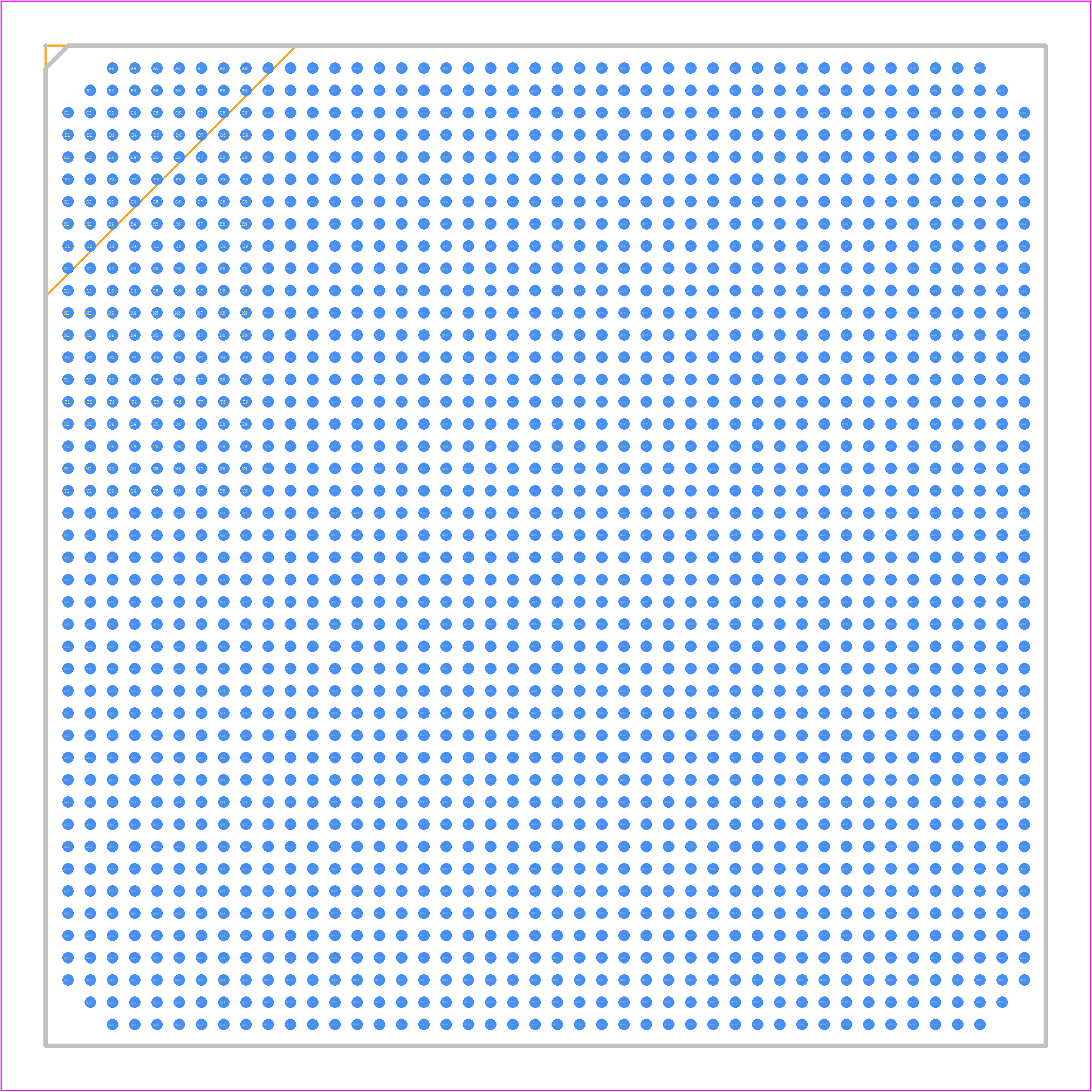

XC7VX690T-2FFG1927C - AMD PCB footprint - BGA - BGA - 1924FCBGA
click to zoom
3D Models
XC7VX690T-2FFG1927C - AMD - 3D model - BGA - 1924FCBGA
click to zoom

XC7VX690T-2FFG1927C Details

  • Manufacturer Part Number:

    XC7VX690T-2FFG1927C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-1927

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Clock Frequency-Max:

    1818 MHz

  • Combinatorial Delay of a CLB-Max:

    0.61 ns

  • JESD-30 Code:

    S-PBGA-B1927

  • JESD-609 Code:

    e1

  • Length:

    45 mm

  • Moisture Sensitivity Level:

    4

  • Number of CLBs:

    54150

  • Number of Inputs:

    600

  • Number of Logic Cells:

    693120

  • Number of Outputs:

    600

  • Number of Terminals:

    1927

  • Operating Temperature-Max:

    85 °C

  • Organization:

    54150 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA1924,44X44,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    245

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.65 mm

  • Supply Voltage-Max:

    1.03 V

  • Supply Voltage-Min:

    0.97 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 28 nm

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    45 mm

XC7VX690T-2FFG1927C Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the XC7VX690T-2FFG1927C is 550 MHz.
  • You can use the MIG (Memory Interface Generator) tool provided by Xilinx to generate a DDR3 memory interface for the XC7VX690T-2FFG1927C. The tool helps you configure the memory interface and generates the necessary IP cores.
  • The power consumption of the XC7VX690T-2FFG1927C depends on the specific design and usage. However, according to the datasheet, the typical static power consumption is around 12W, and the dynamic power consumption can range from 10W to 30W depending on the clock frequency and design activity.
  • Yes, the XC7VX690T-2FFG1927C is capable of supporting high-speed serial interfaces like PCIe and SATA. It has built-in transceivers that can operate at speeds up to 12.5 Gbps, making it suitable for high-speed serial applications.
  • Xilinx provides a range of debugging and testing tools, including ChipScope, ILA (Integrated Logic Analyzer), and VIO (Virtual Input/Output). These tools allow you to monitor and debug your design in real-time, helping you identify and fix issues quickly.
