The maximum operating frequency of the XC7VX690T-3FFG1927E is 550 MHz, but it depends on the specific application and design implementation.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible. Additionally, consider using the FPGA's built-in power management features, such as dynamic voltage and frequency scaling.
Use the Xilinx MIG (Memory Interface Generator) tool to generate a DDR3 memory interface IP core, which provides a pre-verified and optimized implementation. Additionally, follow the Xilinx DDR3 memory interface user guide and application notes for specific design guidelines and best practices.
Use the Xilinx Vivado Design Suite to analyze and optimize signal integrity. Implement proper PCB design practices, such as using differential pairs, adding termination resistors, and minimizing signal routing distances. Additionally, use the FPGA's built-in features, such as input/output delay calibration and signal conditioning, to improve signal quality.
The XC7VX690T-3FFG1927E has limitations on resource utilization, such as the number of available logic cells, block RAM, and DSP slices. Carefully plan and optimize your design to ensure efficient resource utilization, and consider using resource-intensive IP cores or third-party IP to minimize FPGA resource usage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC7VX690T-3FFG1927E Overview

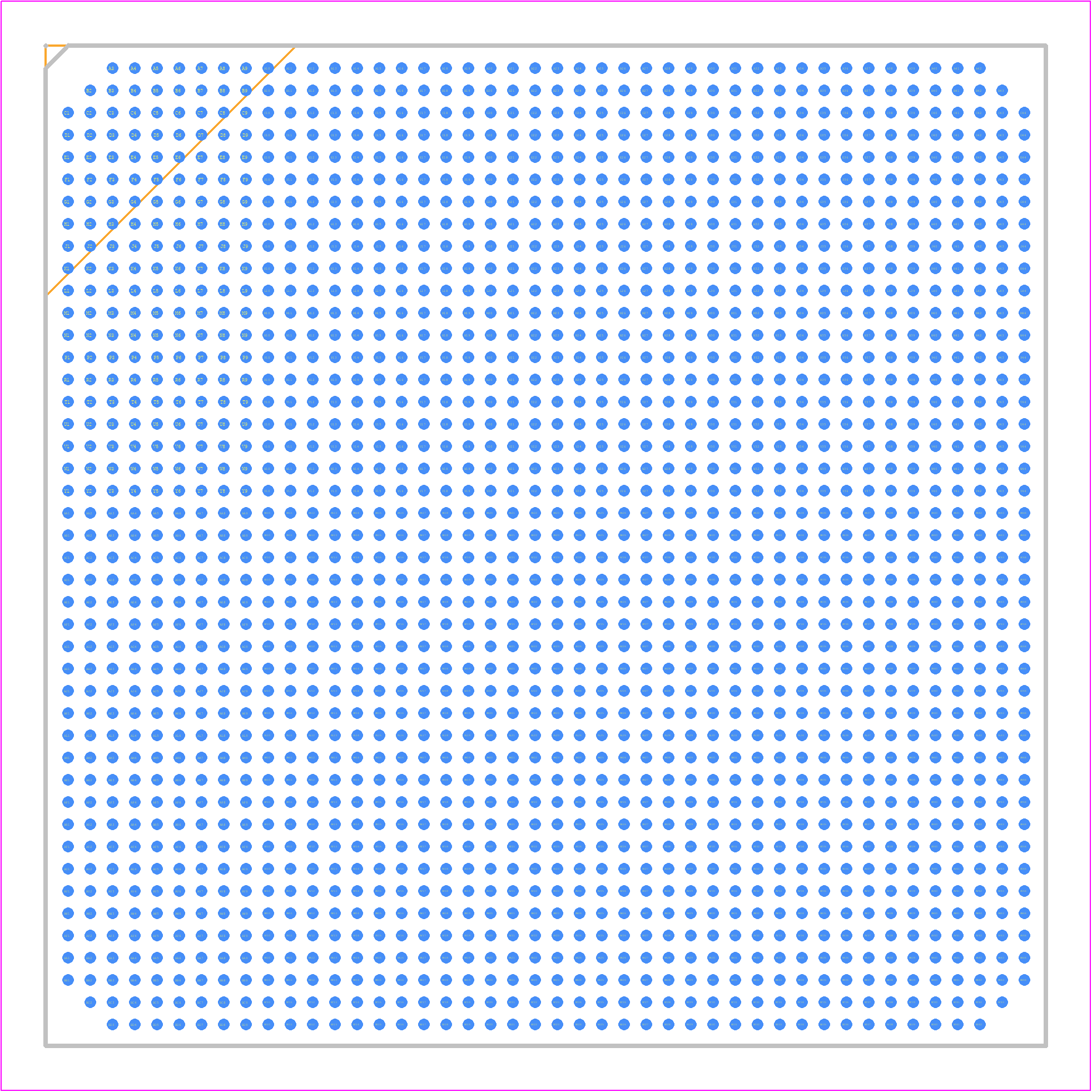

Use the download button to access the XC7VX690T-3FFG1927E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC7VX,
or try a keyword search, such as Field Programmable Gate Arrays
