The maximum operating frequency of the XC7VX980T-1FFG1930I is 550 MHz, but it depends on the specific application, clock domain, and design implementation.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequency, use low-power modes, and optimize the design for minimal dynamic power consumption.
The XC7VX980T-1FFG1930I has a total of 4,860 Kbits of block RAM, 1,220 Kbits of distributed RAM, and 360 Kb of user flash memory.
Yes, the XC7VX980T-1FFG1930I is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its ruggedized design, error correction, and built-in redundancy features.
To ensure signal integrity and reduce noise, use the Xilinx Signal Integrity (SI) tool, follow PCB design guidelines, use differential signaling, and implement noise reduction techniques such as shielding and filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC7VX980T-1FFG1930I Overview

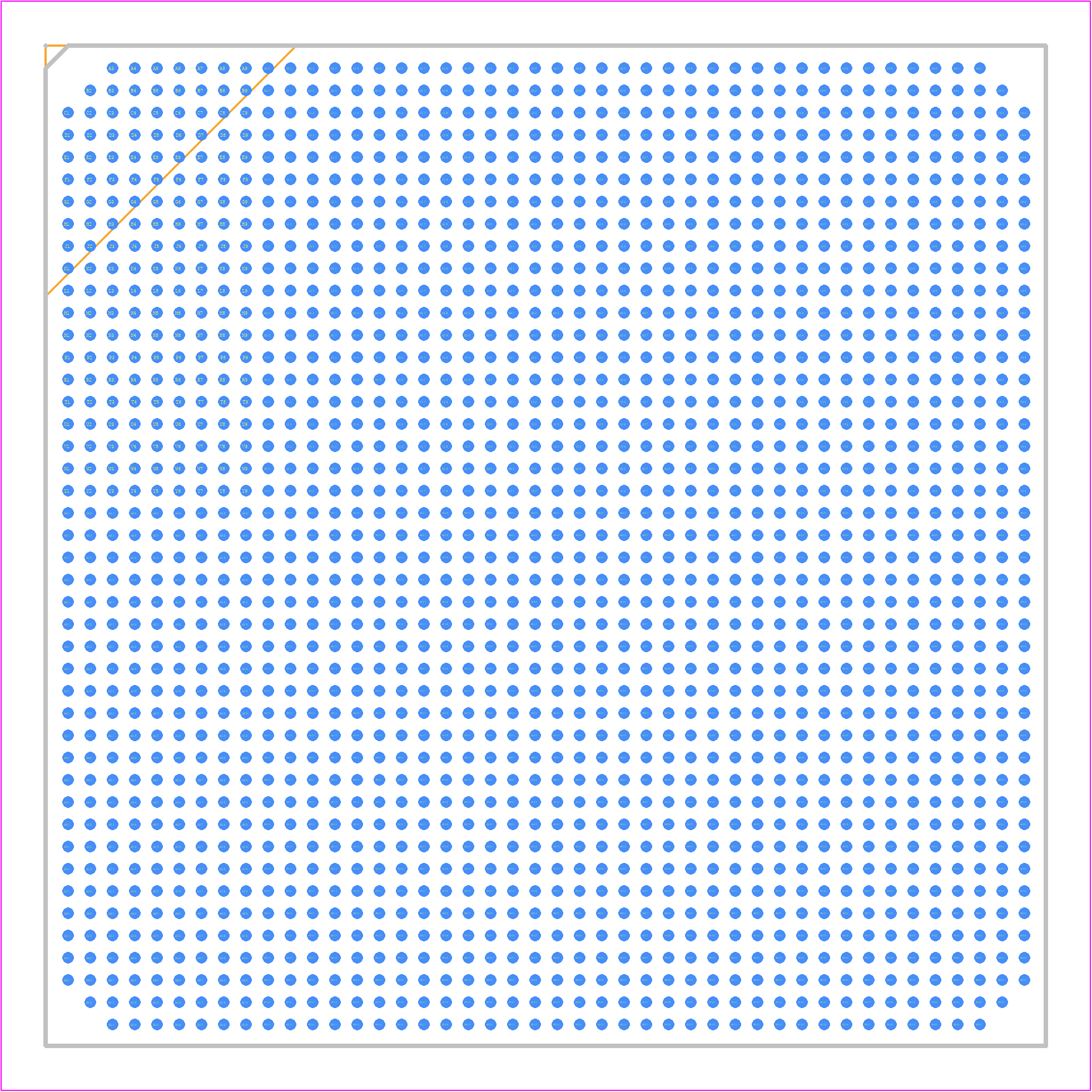

Use the download button to access the XC7VX980T-1FFG1930I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC7VX,
or try a keyword search, such as Field Programmable Gate Arrays
