XC7Z007S-1CLG400C - AMD

Description: XILINX - XC7Z007S-1CLG400C - PSOC, ARM CORTEX-A9, 667MHZ, BGA-400

Download XC7Z007S-1CLG400C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XC7Z007S-1CLG400C - AMD - PCB symbol
click to zoom
PCB Footprints

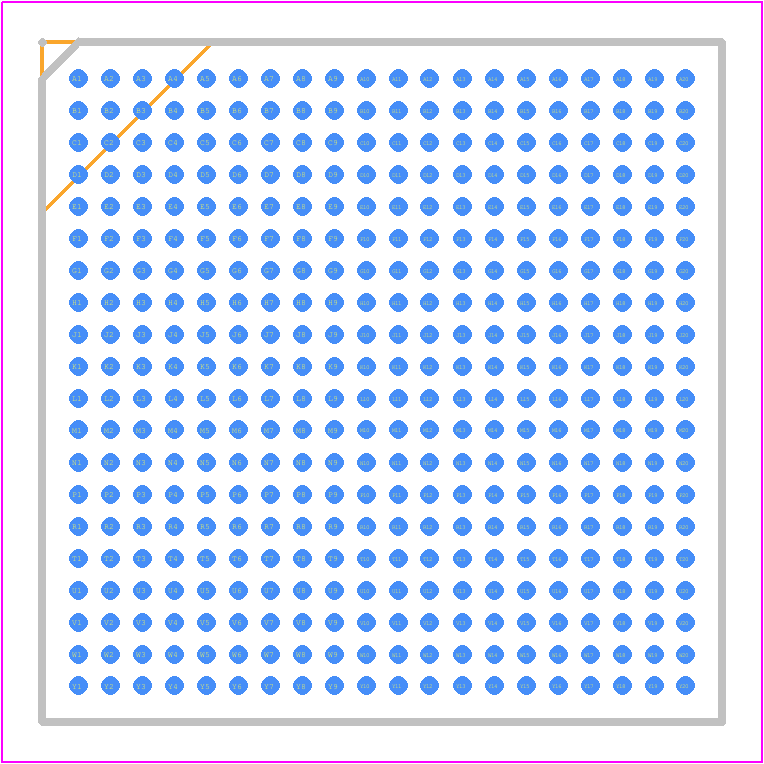

XC7Z007S-1CLG400C - AMD PCB footprint - BGA - BGA - CLG400
click to zoom
3D Models
XC7Z007S-1CLG400C - AMD - 3D model - BGA - CLG400
click to zoom

XC7Z007S-1CLG400C Details

  • Manufacturer Part Number:

    XC7Z007S-1CLG400C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • JESD-30 Code:

    S-PBGA-B400

  • JESD-609 Code:

    e3

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

XC7Z007S-1CLG400C Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the XC7Z007S-1CLG400C is 350 MHz.
  • You can implement a DDR3 memory interface using the MIG (Memory Interface Generator) tool provided by Xilinx. The tool generates a customized IP core for the DDR3 interface.
  • The power consumption of the XC7Z007S-1CLG400C depends on the specific application and usage. However, the typical power consumption is around 1.5W to 2.5W.
  • Yes, the XC7Z007S-1CLG400C is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its ruggedized design and compliance with various industry standards.
  • To optimize the XC7Z007S-1CLG400C for low power consumption, use techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling. Additionally, use the Xilinx Power Analyzer tool to identify and optimize power-hungry areas of the design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC7Z007S-1CLG400C Overview

Use the download button to access the XC7Z007S-1CLG400C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC7Z0, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
