XC7Z010-1CLG400C - AMD

Description: Zynq-7000 All Programmable SoC, BGA-400

Download XC7Z010-1CLG400C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

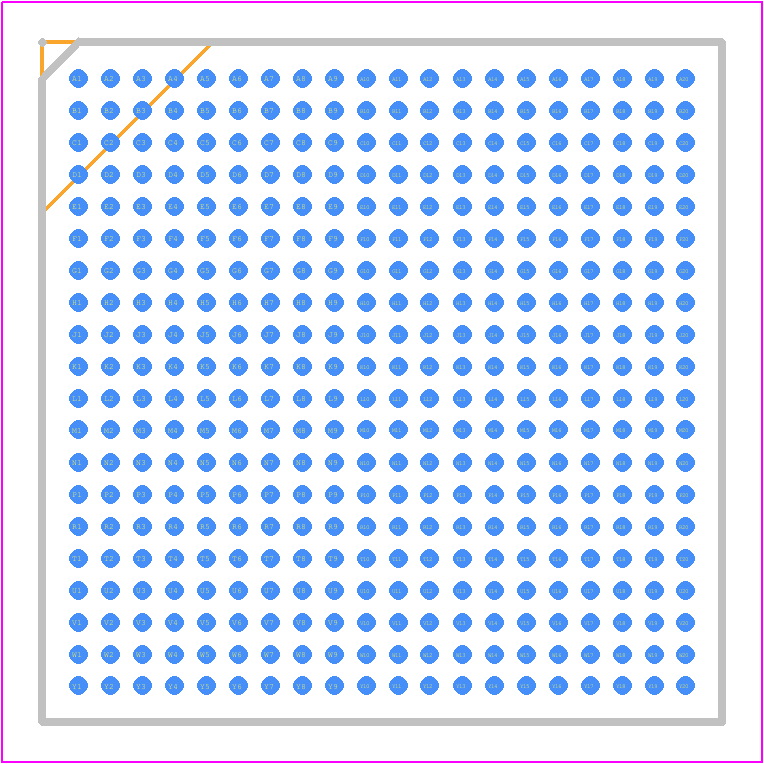

XC7Z010-1CLG400C - AMD PCB footprint - BGA - BGA - CLG400
click to zoom
3D Models
XC7Z010-1CLG400C - AMD  - 3D model - BGA - CLG400
click to zoom

XC7Z010-1CLG400C Details

  • Manufacturer Part Number:

    XC7Z010-1CLG400C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Combinatorial Delay of a CLB-Max:

    1.27 ns

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    2200

  • Number of Inputs:

    228

  • Number of Logic Cells:

    28000

  • Number of Outputs:

    228

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    85 °C

  • Organization:

    2200 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

XC7Z010-1CLG400C Frequently Asked Questions (FAQs)

  • The maximum operating frequency of XC7Z010-1CLG400C is 330 MHz.
  • You can implement DDR3 memory interface using the MIG (Memory Interface Generator) tool provided by Xilinx. The tool generates a customized IP core for DDR3 memory interface.
  • The power consumption of XC7Z010-1CLG400C depends on the operating frequency, voltage, and other factors. According to the datasheet, the typical power consumption is around 1.5W at 100 MHz and 1.2V.
  • Yes, XC7Z010-1CLG400C is suitable for high-reliability applications. It is fabricated using a 28nm process and has built-in features such as error correction and redundancy to ensure high reliability.
  • You can program XC7Z010-1CLG400C using the Xilinx Vivado Design Suite. The suite provides a comprehensive development environment for designing, implementing, and verifying digital systems.
