Part Image

XC7Z010-1CLG400I - AMD

Description: Zynq-7000 All Programmable SoC, DC and AC Switching Characteristics

Download XC7Z010-1CLG400I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

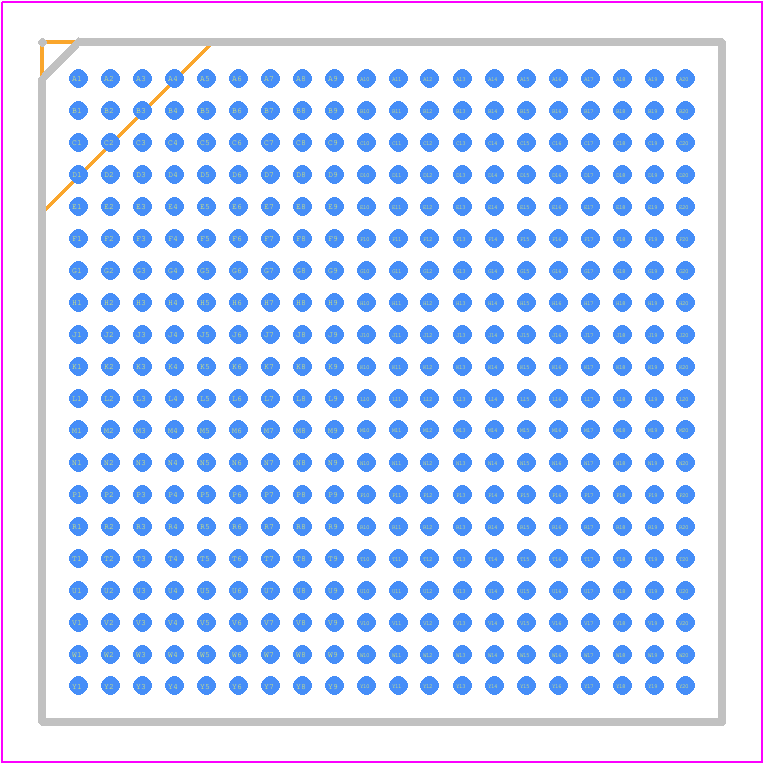

XC7Z010-1CLG400I - AMD PCB footprint - BGA - BGA - CLG400
click to zoom
3D Models
XC7Z010-1CLG400I - AMD  - 3D model - BGA - CLG400
click to zoom

XC7Z010-1CLG400I Details

  • Manufacturer Part Number:

    XC7Z010-1CLG400I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Combinatorial Delay of a CLB-Max:

    1.27 ns

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    2200

  • Number of Inputs:

    228

  • Number of Logic Cells:

    28000

  • Number of Outputs:

    228

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2200 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

XC7Z010-1CLG400I Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the XC7Z010-1CLG400I is 330 MHz.
  • The XC7Z010-1CLG400I has 4 transceivers.
  • The power consumption of the XC7Z010-1CLG400I varies depending on the application and usage, but the typical power consumption is around 2.5W.
  • Yes, the XC7Z010-1CLG400I is compatible with the Vivado Design Suite, which is the development environment for Xilinx FPGAs.
  • The XC7Z010-1CLG400I comes in a CLG400 package, which is a 17mm x 17mm flip-chip ball grid array (FCBGA) package.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC7Z010-1CLG400I Overview

Use the download button to access the XC7Z010-1CLG400I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC7Z0, or try a keyword search, such as Field Programmable Gate Arrays
