XC7Z010-L1CLG400I - AMD

Description: FPGA Zynq-7000 28000 Cells 28nm Technology 1V 400-Pin CS-BGA - Trays

Download XC7Z010-L1CLG400I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

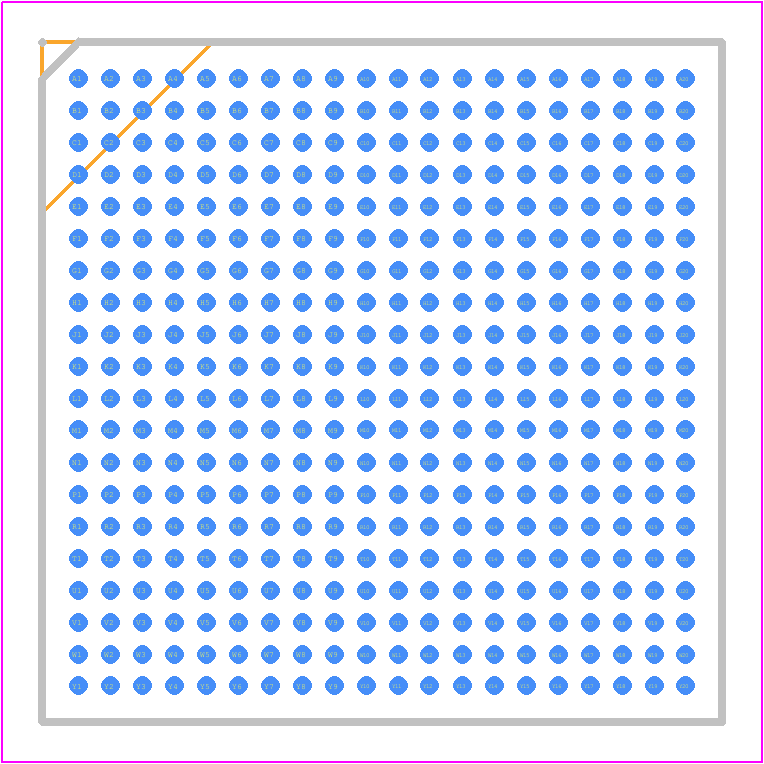

XC7Z010-L1CLG400I - AMD PCB footprint - BGA - BGA - CLG400
click to zoom
3D Models
XC7Z010-L1CLG400I - AMD  - 3D model - BGA - CLG400
click to zoom

XC7Z010-L1CLG400I Details

  • Manufacturer Part Number:

    XC7Z010-L1CLG400I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Combinatorial Delay of a CLB-Max:

    1.27 ns

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    2200

  • Number of Inputs:

    228

  • Number of Logic Cells:

    28000

  • Number of Outputs:

    228

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2200 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    0.98 V

  • Supply Voltage-Min:

    0.92 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

XC7Z010-L1CLG400I Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the XC7Z010-L1CLG400I is 330 MHz.
  • The XC7Z010-L1CLG400I has 4 transceivers, each capable of operating at up to 12.5 Gbps.
  • The typical power consumption of the XC7Z010-L1CLG400I is around 2.5W, but it can vary depending on the design and operating conditions.
  • Yes, the XC7Z010-L1CLG400I supports DDR3 memory, as well as other memory interfaces like DDR2, DDR, and QDR II+.
  • Yes, the XC7Z010-L1CLG400I is suitable for high-reliability applications, as it is designed to meet the requirements of aerospace, defense, and industrial markets.
