The maximum operating frequency of the XC7Z012S-2CLG485I is 330 MHz, but it depends on the specific application, clock domain, and design implementation.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequency, use low-power modes, and optimize the design for low power consumption.
The -2 speed grade has a maximum clock frequency of 330 MHz, while the -3 speed grade has a maximum clock frequency of 400 MHz. The -3 speed grade is faster but also consumes more power.
Yes, the XC7Z012S-2CLG485I is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its ruggedized design and compliance with various industry standards.
Implement secure boot by using the Xilinx Secure Boot mechanism, which involves encrypting the bitstream, using a secure key, and configuring the FPGA to boot securely.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC7Z012S-2CLG485I Overview

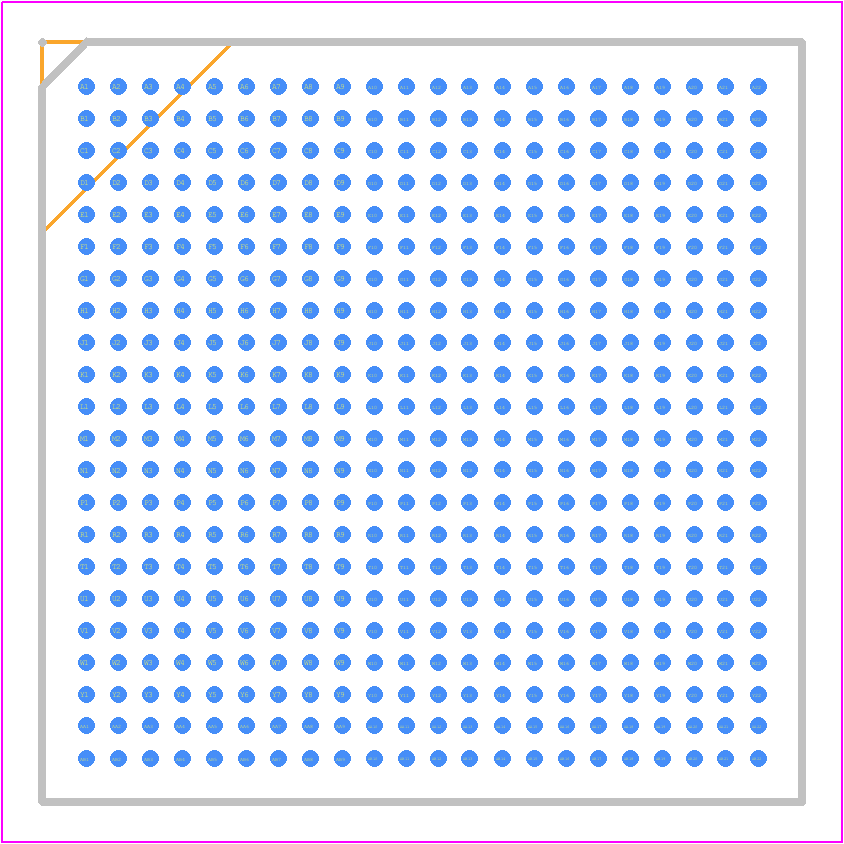

Use the download button to access the XC7Z012S-2CLG485I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC7Z0,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
