XC7Z015-1CLG485C - AMD

Description: SoC FPGA XC7Z015-1CLG485C

Download XC7Z015-1CLG485C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

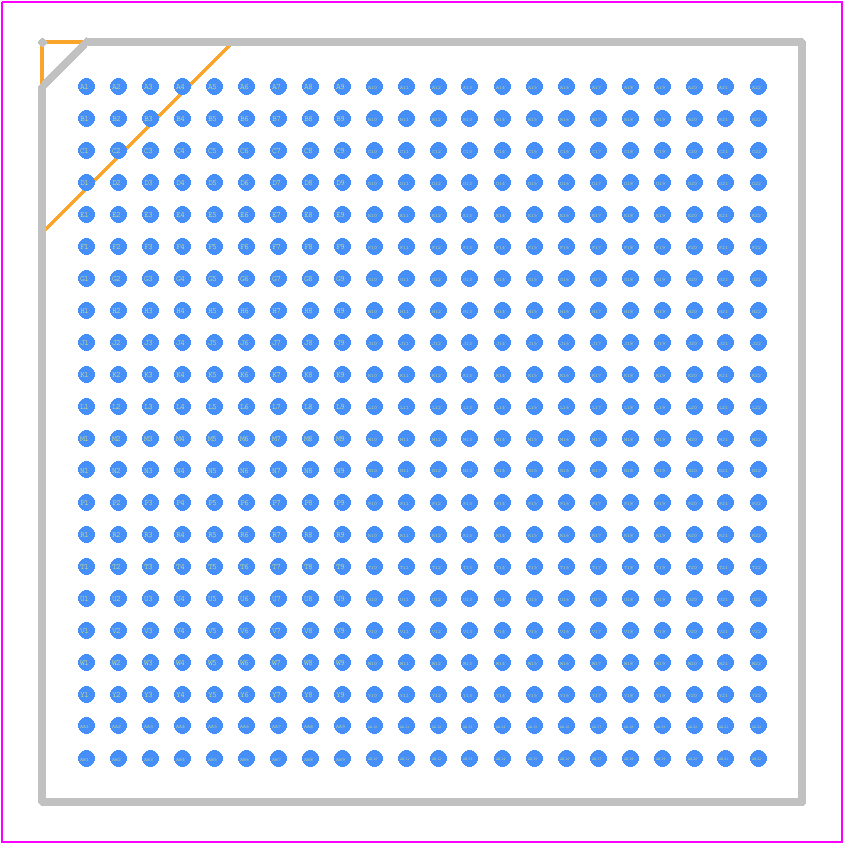

XC7Z015-1CLG485C - AMD PCB footprint - BGA - BGA - CLG484
click to zoom
3D Models
XC7Z015-1CLG485C - AMD  - 3D model - BGA - CLG484
click to zoom

XC7Z015-1CLG485C Details

  • Manufacturer Part Number:

    XC7Z015-1CLG485C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-485

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Combinatorial Delay of a CLB-Max:

    1.27 ns

  • JESD-30 Code:

    S-PBGA-B485

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    5775

  • Number of Inputs:

    278

  • Number of Logic Cells:

    74000

  • Number of Outputs:

    278

  • Number of Terminals:

    485

  • Operating Temperature-Max:

    85 °C

  • Organization:

    5775 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA485,22X22,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

XC7Z015-1CLG485C Frequently Asked Questions (FAQs)

  • The maximum clock frequency of the XC7Z015-1CLG485C is 350 MHz.
  • The XC7Z015-1CLG485C has 485 user I/O pins.
  • The typical power consumption of the XC7Z015-1CLG485C is around 1.2W, but it can vary depending on the design and usage.
  • Yes, the XC7Z015-1CLG485C supports high-speed interfaces like PCIe, SATA, and Gigabit Ethernet.
  • Yes, the XC7Z015-1CLG485C is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its ruggedized design and error correction capabilities.
