XC7Z015-2CLG485E - AMD

Description: XILINX - XC7Z015-2CLG485E - PSOC, ARM CORTEX-A9, 766MHZ, CSBGA-485

Download XC7Z015-2CLG485E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

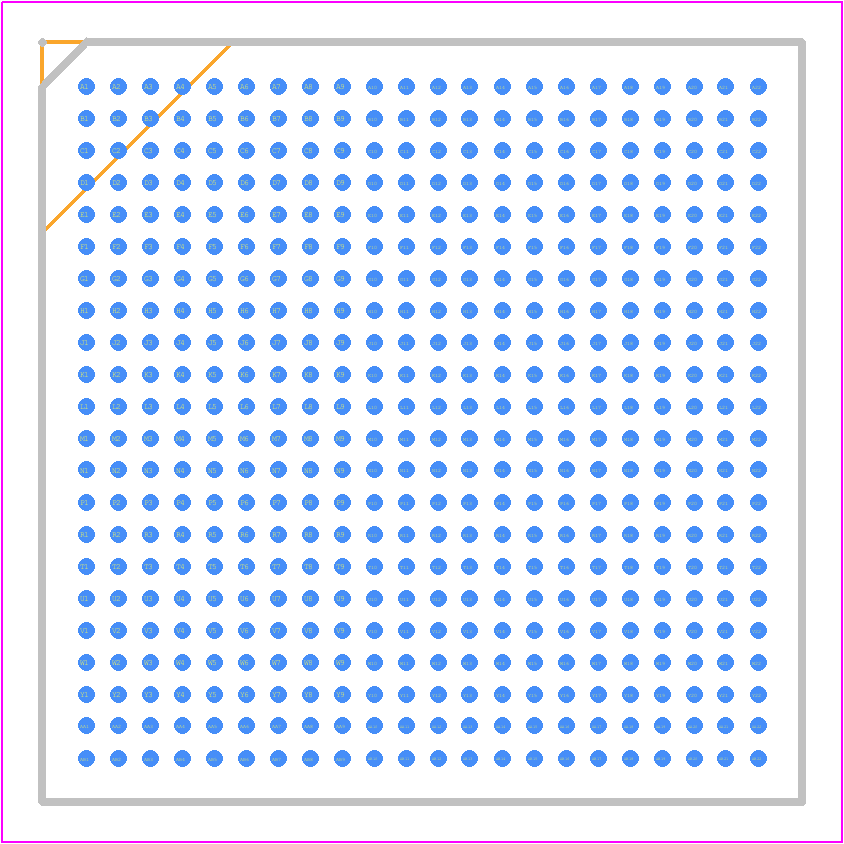

XC7Z015-2CLG485E - AMD PCB footprint - BGA - BGA - CLG484 - Wire-Bond Chip-Scale BGA (0.8 mm Pitch)
click to zoom
3D Models
XC7Z015-2CLG485E - AMD  - 3D model - BGA - CLG484 - Wire-Bond Chip-Scale BGA (0.8 mm Pitch)
click to zoom

XC7Z015-2CLG485E Details

  • Manufacturer Part Number:

    XC7Z015-2CLG485E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-485

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    14

  • Combinatorial Delay of a CLB-Max:

    1.05 ns

  • JESD-30 Code:

    S-PBGA-B485

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    5775

  • Number of Inputs:

    278

  • Number of Logic Cells:

    74000

  • Number of Outputs:

    278

  • Number of Terminals:

    485

  • Operating Temperature-Max:

    100 °C

  • Organization:

    5775 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA485,22X22,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FPGA SOC

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    28 nm

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

XC7Z015-2CLG485E Frequently Asked Questions (FAQs)

  • The maximum operating frequency of XC7Z015-2CLG485E is 330 MHz.
  • XC7Z015-2CLG485E has 4 transceivers, each capable of up to 12.5 Gbps.
  • The typical power consumption of XC7Z015-2CLG485E is around 2.5W, but it can vary depending on the design and usage.
  • Yes, XC7Z015-2CLG485E is compatible with PCIe Gen2 and Gen3, with a maximum bandwidth of 8 GT/s.
  • The maximum memory bandwidth of XC7Z015-2CLG485E is 12.8 GB/s, using the DDR3 memory interface.
