XC8107AC20ER-G - Torex

Description: Power Switch ICs - Power Distribution 85m High Function Power Switch (Fixed Current Limit)

Download XC8107AC20ER-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

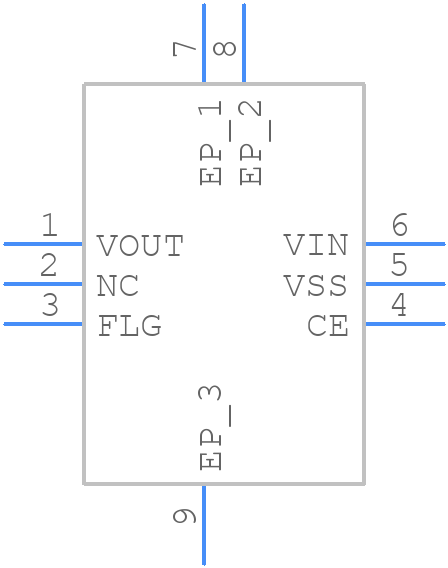

XC8107AC20ER-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC8107AC20ER-G - Torex PCB footprint - Other - Other - USP- 6C
click to zoom
3D Models
XC8107AC20ER-G - Torex - 3D model - Other - USP- 6C
click to zoom

XC8107AC20ER-G Details

  • Manufacturer Part Number:

    XC8107AC20ER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    USP-6

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Additional Feature:

    CURRENT LIMIT:2.64A; THERMAL SHUTDOWN:150C; ADJUSTABLE CURRENT LIMIT

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.07,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Silver/Gold (Ni/Ag/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.9

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.8 mm

XC8107AC20ER-G Frequently Asked Questions (FAQs)

  • Torex recommends a compact PCB layout with minimal trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the IC and use a common ground point for all components.
  • To ensure the XC8107AC20ER-G operates within the specified temperature range, provide adequate heat dissipation through a heat sink or thermal pad. Keep the ambient temperature below 85°C and avoid exposing the device to high temperatures during storage or handling.
  • Torex recommends using a ceramic capacitor with a value between 1uF to 10uF, and an X5R or X7R dielectric. The capacitor should be placed close to the VIN pin and have a low ESR to minimize voltage ripple and noise.
  • To troubleshoot oscillation or instability issues, check the PCB layout for any signs of parasitic inductance or capacitance. Ensure the input capacitor is properly selected and placed. Verify the output voltage is within the specified range and the load current is within the recommended limits. Also, check for any noise or ripple on the input voltage and ensure the device is operated within the specified temperature range.
  • Torex recommends using a ceramic capacitor with a value between 1uF to 22uF, and an X5R or X7R dielectric. The capacitor should be placed close to the VOUT pin and have a low ESR to minimize voltage ripple and noise.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC8107AC20ER-G Overview

Use the download button to access the XC8107AC20ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC810, or try a keyword search, such as Power Management Circuits
