A good PCB layout for XC8108AC20ER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC8108AC20ER-G output voltage, it is essential to use a suitable output capacitor with a low ESR value, such as a ceramic capacitor. The output capacitor should be placed close to the IC, and the input capacitor should be placed close to the input pin.
The maximum ambient temperature range for the XC8108AC20ER-G is -40°C to +85°C. However, the device can operate at a junction temperature of up to 125°C.
Yes, the XC8108AC20ER-G is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing. However, it is essential to follow proper design and layout guidelines to ensure the device operates within its specified parameters.
The power dissipation of the XC8108AC20ER-G can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC8108AC20ER-G Overview

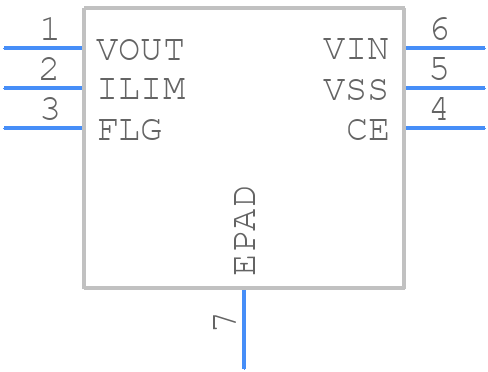

Use the download button to access the XC8108AC20ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC810,
or try a keyword search, such as Power Management Circuits
