XC8109AC10ER-G - Torex

Description: TOREX - XC8109AC10ER-G - Power Load Distribution Switch, High Side, Active High, 1 Output, 5.5V, 1.3A, 0.1ohm, USP-C, 6-Pin

Download XC8109AC10ER-G Model
Schematic
symbols

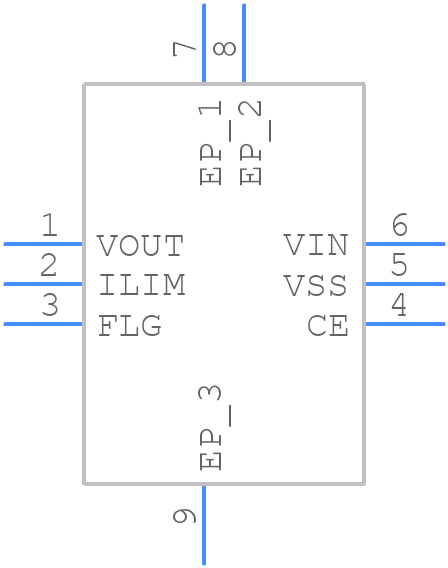

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC8109AC10ER-G - Torex PCB footprint - Other - Other - XC8109AC10ER-G-3
click to zoom
3D Models
XC8109AC10ER-G - Torex  - 3D model - Other - XC8109AC10ER-G-3
click to zoom

XC8109AC10ER-G Details

  • Manufacturer Part Number:

    XC8109AC10ER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    USP-6

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XDSO-N6

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Current-Max (Isup):

    0.075 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Silver/Gold (Ni/Ag/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.9

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.8 mm

XC8109AC10ER-G Frequently Asked Questions (FAQs)

  • A good PCB layout for XC8109AC10ER-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the XC8109AC10ER-G output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the output voltage within the specified range. Additionally, the input voltage should be stable and within the specified range.
  • The maximum ambient temperature range for the XC8109AC10ER-G is -40°C to 85°C. However, the device can operate up to 125°C with a derated output current.
  • Yes, the XC8109AC10ER-G is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
  • The XC8109AC10ER-G has built-in overcurrent protection and thermal shutdown. However, it is recommended to add external protection such as fuses or PTC resistors to prevent damage from excessive current or voltage.
