OUTPUT VOLTAGE RANGE FROM 1.8 V TO 5 V, ALSO OPERATES IN PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
0.65 V
Input Voltage-Nom:
1.8 V
JESD-30 Code:
R-PDSO-N10
Length:
2.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSON
Package Equivalence Code:
SOLCC10,.1,25/20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.6 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
1200 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Silver/Gold (Ni/Ag/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
10
Width:
2.6 mm
XC9131F05CDR-G Frequently Asked Questions (FAQs)
A good PCB layout for XC9131F05CDR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to use the recommended output capacitor value and type, and to place it close to the IC. Additionally, the input voltage should be stable and within the recommended range, and the input capacitor should be of high quality and low ESR.
The maximum ambient temperature range for the XC9131F05CDR-G is -40°C to +85°C. However, the device can operate at a higher temperature range with derating. It's essential to follow the thermal design guidelines to ensure reliable operation.
Yes, the XC9131F05CDR-G is suitable for high-reliability applications. It's built with high-quality materials and has undergone rigorous testing to ensure its reliability. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the XC9131F05CDR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are of the correct value and type, and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operated within its recommended specifications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9131F05CDR-G Overview

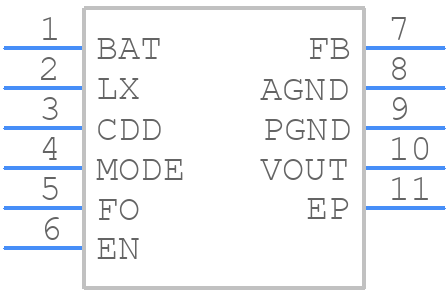

Use the download button to access the XC9131F05CDR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC913,
or try a keyword search, such as Switching Regulator or Controllers
