XC9148A50CER-G - Torex

Description: Highly functionality, 1.4A Step-up DC/DC Converters, USP-6C

Download XC9148A50CER-G Model

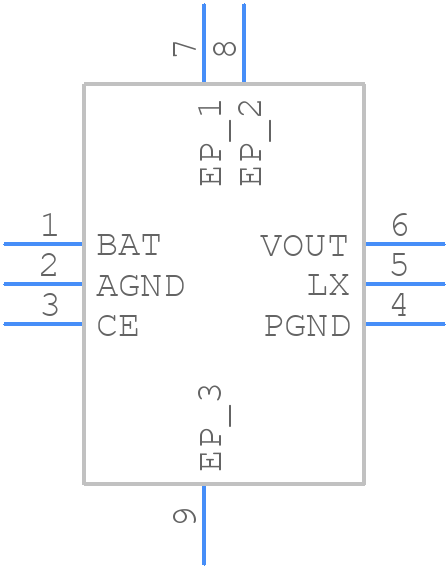

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC9148A50CER-G - Torex PCB footprint - Other - Other - XC9147/8_USP-6C
click to zoom
3D Models
XC9148A50CER-G - Torex  - 3D model - Other - XC9147/8_USP-6C
click to zoom

XC9148A50CER-G Details

  • Manufacturer Part Number:

    XC9148A50CER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    0.65 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.4 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1380 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.8 mm

XC9148A50CER-G Frequently Asked Questions (FAQs)

  • Torex recommends a compact PCB layout with minimal trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place decoupling capacitors close to the IC and use a common ground point for all components.
  • To ensure output voltage stability, it's essential to follow the recommended capacitor selection and placement guidelines. Use a high-quality output capacitor with low ESR and a minimum capacitance of 10uF. Additionally, ensure that the input voltage is within the recommended range, and the output current is within the specified limits.
  • The maximum ambient temperature for reliable operation of XC9148A50CER-G is 85°C. However, it's recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet to ensure reliable operation over the entire temperature range.
  • Yes, XC9148A50CER-G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive-grade ICs and has a high MTBF (Mean Time Between Failures) rating. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the IC meets the specific requirements of your application.
  • To troubleshoot issues with XC9148A50CER-G, start by verifying the input voltage, output current, and ambient temperature are within the recommended ranges. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use a oscilloscope to monitor the output voltage and current waveforms, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes or contact Torex's technical support team for further assistance.
