Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To ensure the XC9223B081DR-G operates within the specified temperature range, it's essential to provide adequate heat sinking and thermal management. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device.
The recommended input capacitor value and type for the XC9223B081DR-G is a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric, placed as close to the VIN pin as possible to minimize noise and ensure stable operation.
To troubleshoot issues with the XC9223B081DR-G, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended values in the datasheet and application notes. Use an oscilloscope to measure the output voltage and current waveforms, and consult Torex's application notes and technical support resources for guidance.
Yes, the XC9223B081DR-G is compatible with lead-free soldering processes, and Torex recommends following the JEITA ED-4701 standard for lead-free soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9223B081DR-G Overview

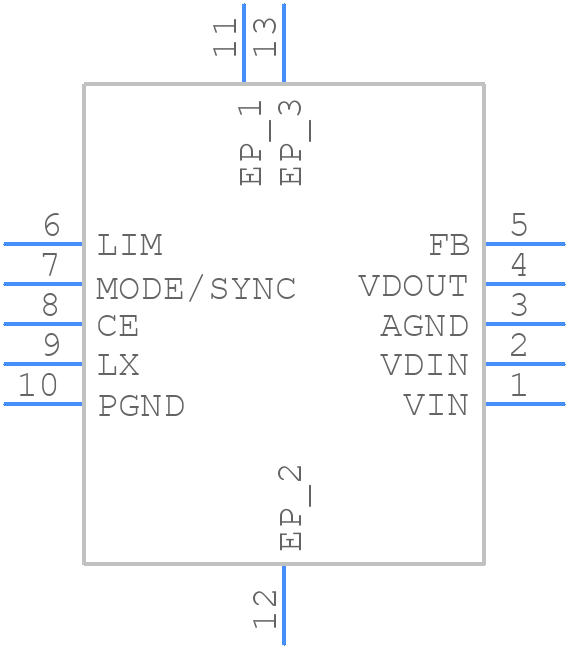

Use the download button to access the XC9223B081DR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC922,
or try a keyword search, such as Switching Regulator or Controllers
