Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Torex recommends using a low-ESR capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage. Refer to the datasheet and application notes for more detailed guidance.
The maximum ambient temperature for the XC9242B08DQR-G is 85°C, as specified in the datasheet. However, it's essential to consider the device's thermal characteristics, such as the junction temperature (Tj), which should not exceed 125°C.
Yes, the XC9242B08DQR-G is suitable for high-reliability and automotive applications. Torex provides a range of reliability and quality certifications, including AEC-Q100, IATF 16949, and ISO 9001. However, it's essential to consult with Torex or an authorized distributor to ensure the device meets the specific requirements of your application.
Torex provides a troubleshooting guide in their application note AN-103, which covers common issues and their solutions. Additionally, engineers can consult the datasheet, application notes, and Torex's technical support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9242B08DQR-G Overview

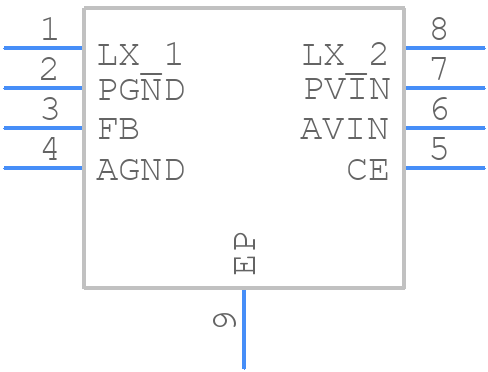

Use the download button to access the XC9242B08DQR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC924,
or try a keyword search, such as Switching Regulator or Controllers
