XC9243B08DDR-G - Torex

Description: IC REG BUCK ADJUSTABLE 2A 10USPB

Download XC9243B08DDR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

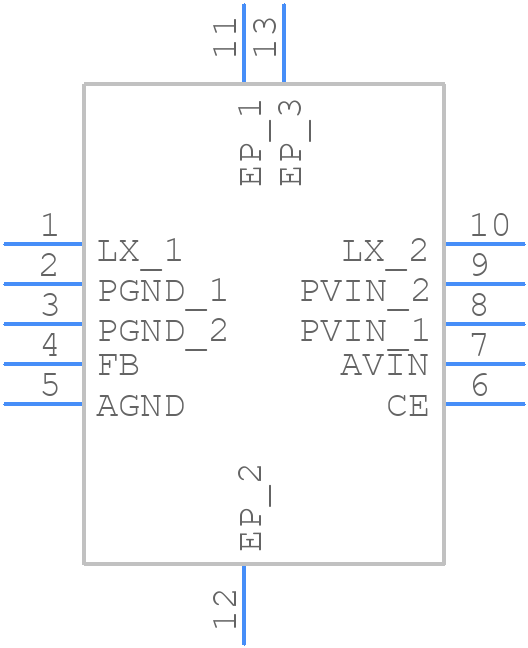

Symbol
XC9243B08DDR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC9243B08DDR-G - Torex PCB footprint - Other - Other - XC9243B08DDR-G-2
click to zoom
3D Models
XC9243B08DDR-G - Torex - 3D model - Other - XC9243B08DDR-G-2
click to zoom

XC9243B08DDR-G Details

  • Manufacturer Part Number:

    XC9243B08DDR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-N10

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC10,.1,25/20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2760 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL SILVER GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

XC9243B08DDR-G Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short and wide traces for the power lines.
  • Use a high-quality output capacitor with low ESR, and ensure the output voltage is within the recommended range. Also, avoid sudden changes in load current to prevent output voltage fluctuations.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • The XC9243B08DDR-G is rated for operation up to 85°C, but it's recommended to derate the output current and voltage at higher temperatures to ensure reliability.
  • Check the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and of the correct value. Also, check for any signs of overheating or physical damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC9243B08DDR-G Overview

Use the download button to access the XC9243B08DDR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC924, or try a keyword search, such as Switching Regulator or Controllers
