Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. Keep the input and output traces as short as possible and avoid routing them near noise sources. Use a 10uF ceramic capacitor for input decoupling and a 1uF ceramic capacitor for output decoupling.
Ensure good airflow around the device, avoid blocking the thermal pad, and use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Also, consider using a heat sink or a thermal management system if the device is expected to operate in high-temperature environments.
Torex recommends using a 10uF ceramic capacitor (X5R or X7R dielectric) with a voltage rating of at least 2x the input voltage. The capacitor should be placed as close as possible to the VIN pin and connected to the GND pin.
Yes, the XC9263B755ER-G is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure the device meets the required reliability and quality standards.
Start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for troubleshooting guidelines and contact Torex support if the issue persists.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9263B755ER-G Overview

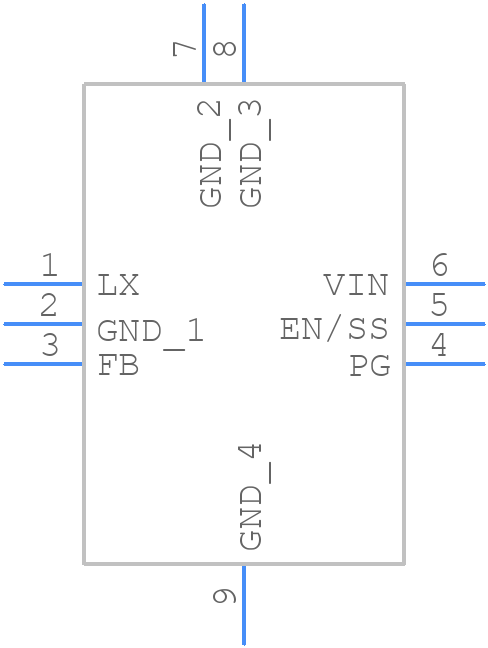

Use the download button to access the XC9263B755ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC926,
or try a keyword search, such as Switching Regulator or Controllers
