XC9263B75DER-G footprint, schematic symbol and 3D model by Torex

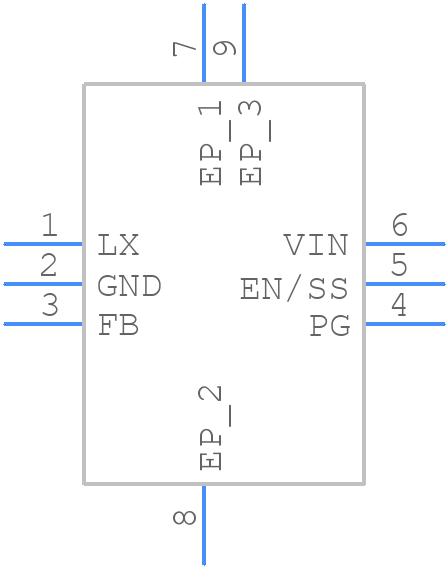

Symbol

click to zoom

PCB Footprints

XC9263B75DER-G - Torex PCB footprint - Other - Other - USP-6C_2022_1

click to zoom

3D Models

XC9263B75DER-G - Torex - 3D model - Other - USP-6C_2022_1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XC9263B75DER-G
Part Number XC9263B75DER-G
Manufacturer Torex
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - USP-6C_2022_1
Released Date Jul 1, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

XC9263B75DER-G Details

Manufacturer Part Number:
XC9263B75DER-G
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Torex Semiconductor LTD
YTEOL:
0
Additional Feature:
Terminal Pitch between Pin 1 to Pin 2 is 0.55mm
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
18 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-PDSO-N6
Length:
2 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.5 A
Output Voltage-Max:
15 V
Output Voltage-Min:
1 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC6,.08,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.6 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2387 kHz
Terminal Finish:
NICKEL SILVER GOLD
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
10
Width:
1.8 mm

XC9263B75DER-G Frequently Asked Questions (FAQs)

Torex recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a 10uF ceramic capacitor for input decoupling and a 1uF ceramic capacitor for output decoupling.
Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, follow the recommended PCB layout and thermal design guidelines to minimize thermal resistance.
Torex recommends using a 10uF ceramic capacitor with an X5R or X7R dielectric, and a voltage rating of at least 10V. The capacitor should be placed as close to the VIN pin as possible.
Check the input voltage, output load, and PCB layout for any issues. Verify that the input capacitor is properly connected and meets the recommended specifications. Also, check for any signs of overheating or excessive current draw.
Yes, the XC9263B75DER-G is compatible with lead-free soldering processes, and Torex recommends following the JEITA ED-4701 standard for lead-free soldering.

Trust Checks

Community Provided

System Verified

Community Approved

XC9263B75DER-G Overview

Use the download button to access the XC9263B75DER-G schematic symbol, PCB footprint, and 3D model.
