XC9264B75DER-G - Torex

Description: Switching Voltage Regulators 18V DCDC Converters 0.5A Sync PWM w/AS

Download XC9264B75DER-G Model
Schematic

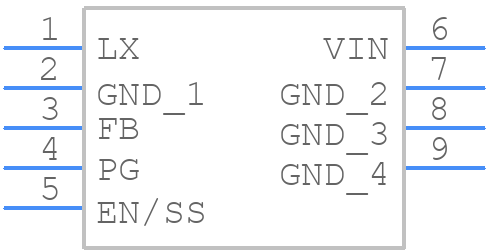

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XC9264B75DER-G - Torex PCB footprint - Other - Other - XC9264B75DER-G-1
click to zoom
3D Models
XC9264B75DER-G - Torex  - 3D model - Other - XC9264B75DER-G-1
click to zoom

XC9264B75DER-G Details

  • Manufacturer Part Number:

    XC9264B75DER-G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Additional Feature:

    Terminal Pitch between Pin 1 to Pin 2 is 0.55mm

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-N6

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Output Voltage-Max:

    15 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2387 kHz

  • Terminal Finish:

    NICKEL SILVER GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Width:

    1.8 mm

XC9264B75DER-G Frequently Asked Questions (FAQs)

  • Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the feedback resistors should be placed close to the output pin. A detailed layout guide can be found in the Torex application note AN-104.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should be selected based on the output voltage and current requirements. A minimum output capacitance of 10uF is recommended, and the ESR should be less than 100mΩ. The input capacitor should be selected based on the input voltage and current requirements.
  • The maximum ambient temperature for reliable operation of XC9264B75DER-G is 85°C. However, the device can operate up to 105°C with derating. It's essential to ensure proper heat dissipation and thermal management to prevent overheating.
  • Yes, XC9264B75DER-G is designed to operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the components are properly soldered to prevent mechanical stress. Additionally, the device should be operated within the recommended temperature range to prevent thermal stress.
  • To troubleshoot issues with XC9264B75DER-G, start by verifying the input voltage and current, output voltage and current, and the feedback loop. Check for any signs of overheating, and ensure that the device is operated within the recommended temperature range. Use an oscilloscope to check for any oscillations or noise on the output. If the issue persists, consult the Torex application notes and contact Torex technical support for further assistance.
