Part Image

XC9266B06CZR-G - Torex

Description: Switching Voltage Regulators 6.0A DCDC Converters COT CNTRL /STEP-DOWN

Download XC9266B06CZR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

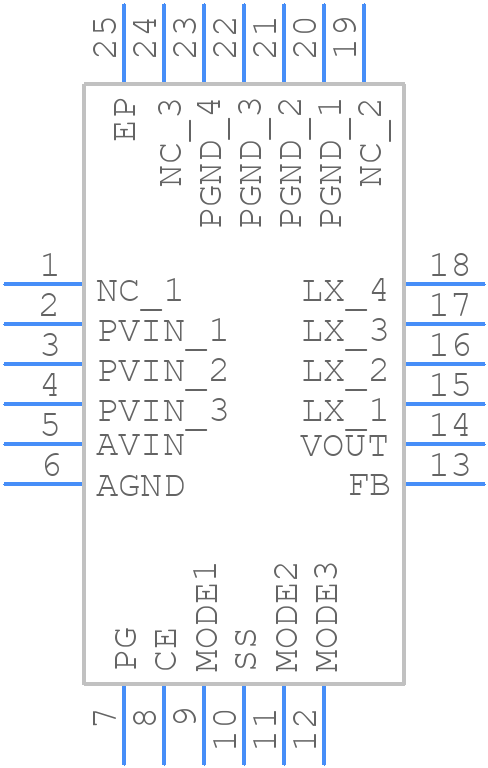

Symbol
XC9266B06CZR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XC9266B06CZR-G - Torex PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN0404-24C
click to zoom
3D Models
XC9266B06CZR-G - Torex - 3D model - Quad Flat No-Lead - QFN0404-24C
click to zoom

XC9266B06CZR-G Details

  • Manufacturer Part Number:

    XC9266B06CZR-G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

XC9266B06CZR-G Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 1uF to 10uF, depending on the input voltage and output current requirements.
  • To ensure stability, it's recommended to use a minimum output capacitor of 2.2uF with an ESR of 1 ohm or less, and to follow the layout guidelines in the datasheet.
  • The maximum ambient temperature for the XC9266B06CZR-G is 85°C, with a derating of 6.25mW/°C above 55°C.
  • Yes, the XC9266B06CZR-G is suitable for high-reliability applications, with a guaranteed operating life of 10 years at 55°C ambient temperature.
  • The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XC9266B06CZR-G Overview

Use the download button to access the XC9266B06CZR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC926, or try a keyword search, such as Switching Regulator or Controllers
