A good PCB layout for XC9271A085QR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the XC9271A085QR-G output voltage, it is essential to use the recommended output capacitor value and type, and to ensure that the output capacitor is placed close to the IC. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for the XC9271A085QR-G is -40°C to 105°C. However, the device can operate at a higher temperature range with derating.
Yes, the XC9271A085QR-G is suitable for high-reliability applications due to its high-quality manufacturing process and rigorous testing. However, it is essential to follow the recommended operating conditions and to perform thorough testing and validation.
To troubleshoot issues with the XC9271A085QR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor LTD support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9271A085QR-G Overview

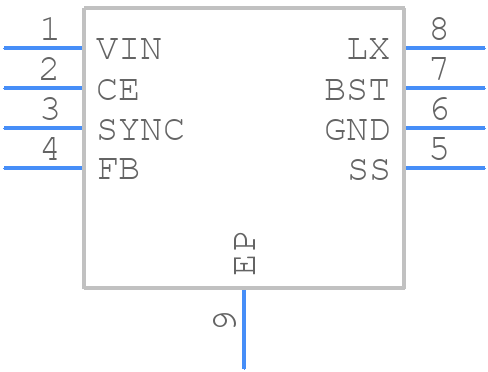

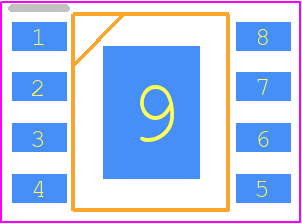

Use the download button to access the XC9271A085QR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC927,
or try a keyword search, such as Switching Regulator or Controllers
