Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, thermal vias, and routing to minimize noise and ensure stable operation.
The output capacitor selection depends on the output voltage, output current, and ripple requirements. Torex recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 2x the output voltage.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Torex recommends derating the device for reliable operation above 70°C. Consult the datasheet and application notes for thermal derating guidelines.
Yes, XC9276DB90ER-G is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow Torex's guidelines for component selection, PCB design, and testing to meet the specific requirements of your application.
Start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, component selection, and thermal management. Consult Torex's application notes and technical support resources for troubleshooting guidelines and FAQs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9276DB90ER-G Overview

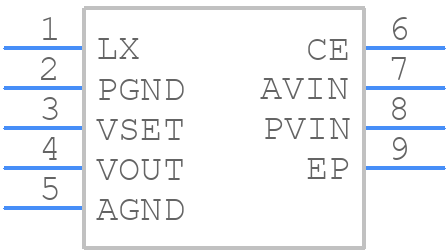

Use the download button to access the XC9276DB90ER-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XC927,
or try a keyword search, such as Switching Regulator or Controllers
