PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
3.2 V
JESD-30 Code:
R-PBGA-B5
Length:
0.96 mm
Number of Functions:
1
Number of Terminals:
5
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Max:
1.218 V
Output Voltage-Min:
1.182 V
Output Voltage-Nom:
1.2 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Equivalence Code:
BGA5,3X3,12/10
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.33 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
6000 kHz
Terminal Form:
BALL
Terminal Pitch:
0.312 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
10
Width:
0.88 mm
XC9282B12E0R-G Frequently Asked Questions (FAQs)
Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Torex recommends using a low-ESR capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage. A detailed calculation method is provided in the datasheet.
The maximum ambient temperature range for the XC9282B12E0R-G is -40°C to +85°C, but the device can operate up to +105°C with derating. Refer to the datasheet for detailed thermal derating information.
Yes, the XC9282B12E0R-G is suitable for high-reliability and automotive applications. Torex provides a dedicated automotive-grade version, XC9282B12E0R-GA, which meets the AEC-Q100 standard. However, it's essential to consult with Torex or a qualified distributor for specific requirements and qualifications.
Torex provides a troubleshooting guide in their application note AN-105, which covers common issues, possible causes, and recommended solutions. Additionally, engineers can consult the datasheet, application notes, and Torex's technical support resources for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9282B12E0R-G Overview

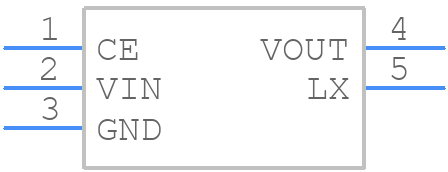

Use the download button to access the XC9282B12E0R-G schematic symbol, PCB footprint, and 3D model.
