PULSE FREQUENCY MODULATION TECHNIQUE ALSO AVAILABLE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
3.2 V
JESD-30 Code:
S-XBGA-N6
Length:
1.2 mm
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.6 A
Output Voltage-Max:
1.218 V
Output Voltage-Min:
1.182 V
Output Voltage-Nom:
1.2 V
Package Body Material:
UNSPECIFIED
Package Code:
VFLGA
Package Equivalence Code:
LGA6,2X3,16
Package Shape:
SQUARE
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Packing Method:
TR
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.3 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
6000 kHz
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
10
Width:
1.2 mm
XC9282B12E1R-G Frequently Asked Questions (FAQs)
Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, thermal vias, and routing to minimize noise and ensure stable operation.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. Torex recommends using a low-ESR capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage.
The XC9282B12E1R-G is rated for operation up to 105°C ambient temperature, but it's recommended to derate the output current and voltage to ensure reliable operation at high temperatures.
The XC9282B12E1R-G has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OC pin and GND. The resistor value determines the overcurrent threshold, and Torex provides a calculation formula in the datasheet.
Yes, the XC9282B12E1R-G is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, it's essential to follow Torex's guidelines for PCB design, component selection, and testing to ensure the required level of reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XC9282B12E1R-G Overview

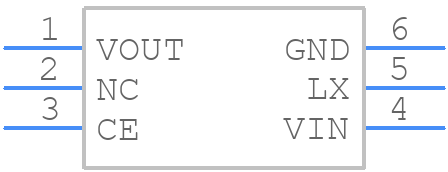

Use the download button to access the XC9282B12E1R-G schematic symbol, PCB footprint, and 3D model.
