XCAU10P-2SBVB484E - AMD

XCAU10P-2SBVB484E Details

• Manufacturer Part Number:

  XCAU10P-2SBVB484E

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

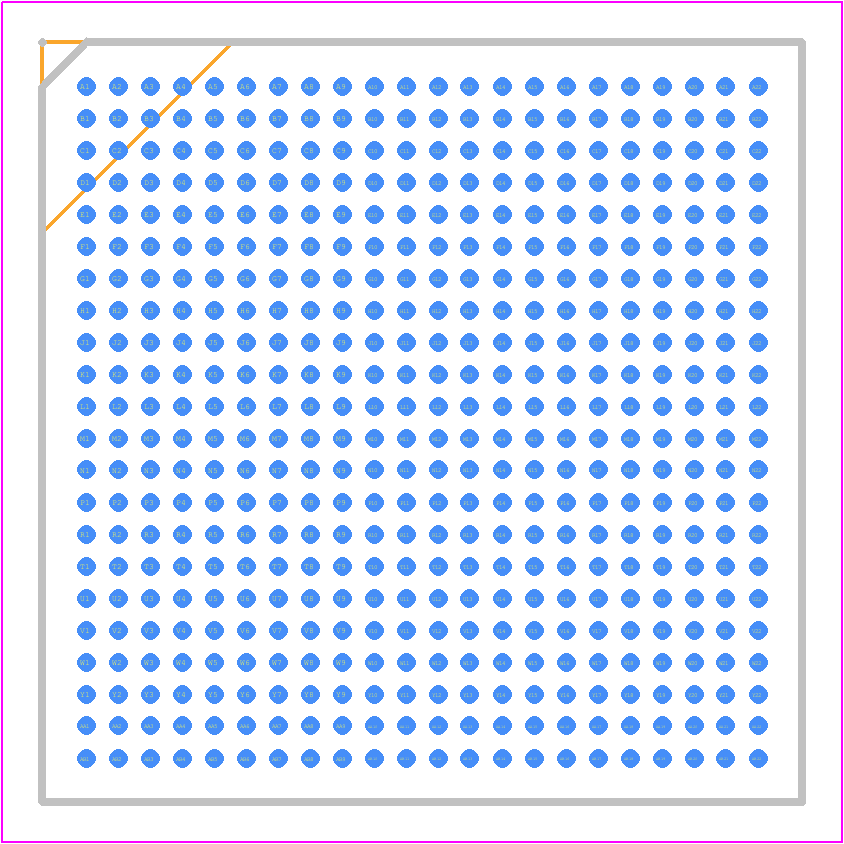

• Package Description:

  FCBGA-484

• HTS Code:

  8542.31.00.60

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  AMD

• YTEOL:

  19

• JESD-30 Code:

  S-PBGA-B484

• Length:

  19 mm

• Moisture Sensitivity Level:

  4

• Number of CLBs:

  5500

• Number of Inputs:

  204

• Number of Logic Cells:

  96250

• Number of Outputs:

  204

• Number of Terminals:

  484

• Operating Temperature-Max:

  100 °C

• Organization:

  5500 CLBS

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA484,22X22,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, FINE PITCH

• Peak Reflow Temperature (Cel):

  250

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Seated Height-Max:

  2.79 mm

• Supply Voltage-Max:

  0.876 V

• Supply Voltage-Min:

  0.825 V

• Supply Voltage-Nom:

  0.85 V

• Surface Mount:

  YES

• Technology:

  16 nm

• Terminal Finish:

  Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  19 mm
