XCAU15P-1UBVA368E - AMD

Description: Artix® UltraScale+ Field Programmable Gate Array (FPGA) IC 128 5347738 170100 368-WFBGA, FCBGA

Download XCAU15P-1UBVA368E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XCAU15P-1UBVA368E - AMD - PCB symbol
click to zoom
PCB Footprints

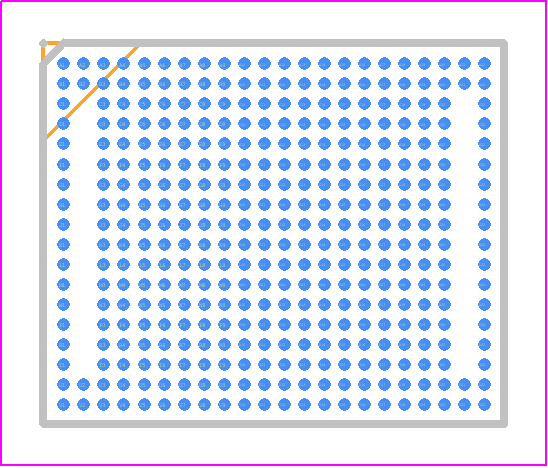

XCAU15P-1UBVA368E - AMD PCB footprint - BGA - BGA - UBVA368
click to zoom
3D Models
XCAU15P-1UBVA368E - AMD - 3D model - BGA - UBVA368
click to zoom

XCAU15P-1UBVA368E Details

  • Manufacturer Part Number:

    XCAU15P-1UBVA368E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-368

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    19

  • JESD-30 Code:

    R-PBGA-B368

  • Length:

    11.5 mm

  • Number of CLBs:

    9720

  • Number of Inputs:

    128

  • Number of Logic Cells:

    170100

  • Number of Outputs:

    128

  • Number of Terminals:

    368

  • Operating Temperature-Max:

    100 °C

  • Organization:

    9720 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA368,18X22,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    0.692 mm

  • Supply Voltage-Max:

    0.876 V

  • Supply Voltage-Min:

    0.825 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9.5 mm

XCAU15P-1UBVA368E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the XCAU15P-1UBVA368E is -40°C to 125°C.
  • Handle the device by the edges, avoid touching the pins, and store it in an anti-static bag or wrap to prevent electrostatic discharge (ESD) damage.
  • The recommended power-up sequence is to apply VDD first, followed by VDDP, and then the clock signal. Ensure that VDD and VDDP are stable before applying the clock signal.
  • Check the power supply, clock signal, and reset pin connections. Verify that the device is properly configured and that the firmware is up-to-date. Use debugging tools, such as logic analyzers or oscilloscopes, to identify the root cause of the issue.
  • The XCAU15P-1UBVA368E is not specifically designed for radiation-hardened or high-reliability applications. However, AMD provides radiation-tolerant and high-reliability versions of some devices. Contact AMD for more information on these options.
