XCAU15P-1UBVA368I - AMD

Description: FPGA - Field Programmable Gate Array XCAU15P-1UBVA368I

Download XCAU15P-1UBVA368I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
XCAU15P-1UBVA368I - AMD - PCB symbol
click to zoom
PCB Footprints

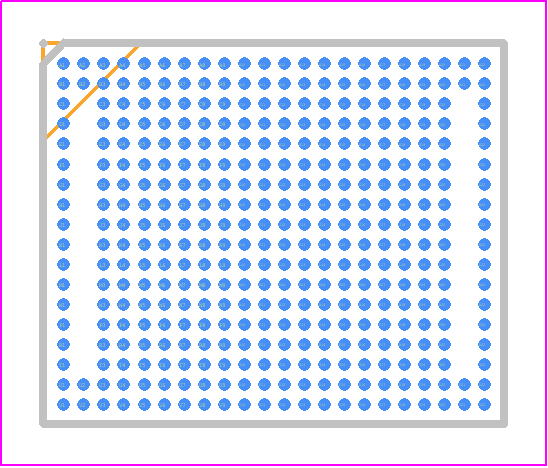

XCAU15P-1UBVA368I - AMD PCB footprint - BGA - BGA - UBVA368
click to zoom
3D Models
XCAU15P-1UBVA368I - AMD - 3D model - BGA - UBVA368
click to zoom

XCAU15P-1UBVA368I Details

  • Manufacturer Part Number:

    XCAU15P-1UBVA368I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-368

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    19

  • JESD-30 Code:

    R-PBGA-B368

  • Length:

    11.5 mm

  • Number of CLBs:

    9720

  • Number of Inputs:

    128

  • Number of Logic Cells:

    170100

  • Number of Outputs:

    128

  • Number of Terminals:

    368

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    9720 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA368,18X22,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    0.692 mm

  • Supply Voltage-Max:

    0.876 V

  • Supply Voltage-Min:

    0.825 V

  • Supply Voltage-Nom:

    0.85 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    9.5 mm

XCAU15P-1UBVA368I Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the XCAU15P-1UBVA368I is 0°C to 90°C, with a maximum junction temperature of 125°C.
  • Handle the XCAU15P-1UBVA368I by the edges, avoid touching the pins, and store it in an anti-static bag or wrap it in anti-static material to prevent electrostatic discharge (ESD) damage.
  • The maximum power consumption of the XCAU15P-1UBVA368I is approximately 15W, but this can vary depending on the specific use case and operating conditions.
  • While the XCAU15P-1UBVA368I is designed to be robust, it's recommended to follow AMD's guidelines for vibration and shock testing to ensure reliable operation in high-vibration environments.
  • Start by consulting the datasheet and application notes, then check for proper power supply, clock signal integrity, and signal routing. If issues persist, contact AMD support or a qualified engineer for further assistance.
