The maximum operating temperature range for the XCAU15P-2UBVA368E is -40°C to 100°C.
To optimize power consumption, ensure proper voltage regulation, reduce clock speeds when possible, and use power-saving features like dynamic voltage and frequency scaling (DVFS) and clock gating.
Follow AMD's recommended PCB layout guidelines, including proper decoupling, signal integrity, and thermal management. Ensure a solid ground plane, and use a 4-layer or 6-layer PCB to minimize signal noise and crosstalk.
Use AMD's debugging tools, such as the AMD Debug Tool (ADT) or the AMD Embedded Debugger (AED), to identify and troubleshoot issues. Check the system's power supply, clock settings, and memory configuration for potential causes.
The XCAU15P-2UBVA368E supports up to 64GB of DDR4-2400 memory and various storage options, including eMMC, SD, and SATA. Ensure proper memory and storage configuration to optimize system performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCAU15P-2UBVA368E Overview

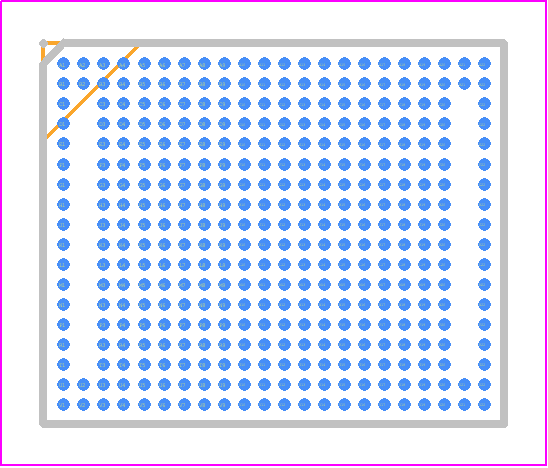

Use the download button to access the XCAU15P-2UBVA368E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCAU1,
or try a keyword search, such as Field Programmable Gate Arrays
