The maximum power consumption of the XCKU115-2FLVF1924I is approximately 25W, but it can vary depending on the specific design, clock frequency, and operating conditions.
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible. Additionally, consider using the AMD-provided power optimization IP cores and following the Xilinx Power Management Guide.
The maximum operating temperature of the XCKU115-2FLVF1924I is 100°C (industrial grade) or 125°C (extended temperature range). However, it's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
No, the XCKU115-2FLVF1924I is not a radiation-hardened device. If you need a radiation-hardened FPGA, consider using AMD's QPro or RT Pro devices, which are designed for high-reliability applications.
To ensure signal integrity, follow the Xilinx PCB Design Guide, use controlled impedance routing, and add termination resistors as needed. Additionally, use the Xilinx Signal Integrity Tool (SIT) to analyze and optimize your design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCKU115-2FLVF1924I Overview

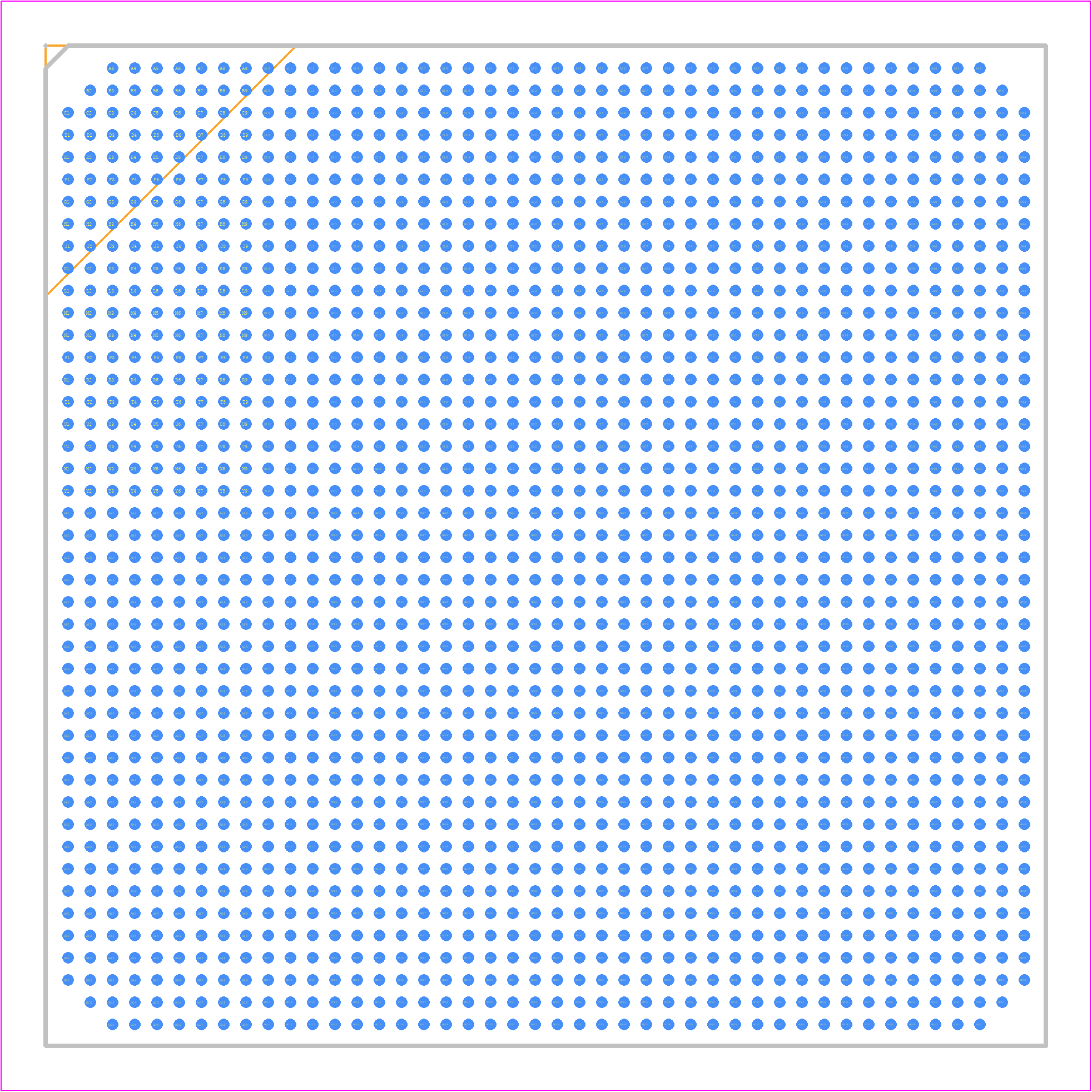

Use the download button to access the XCKU115-2FLVF1924I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCKU1,
or try a keyword search, such as Field Programmable Gate Arrays
