XCL101A181ER-G - Torex

Description: DC DC CONVERTER 1.8V 0.3W

Download XCL101A181ER-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

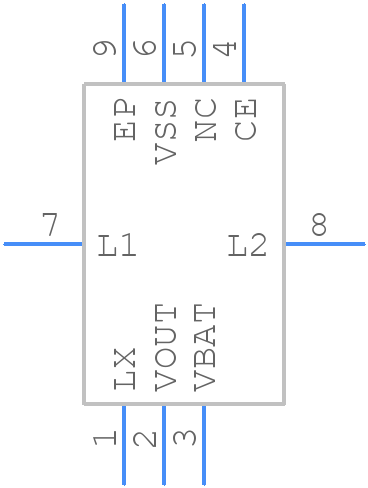

XCL101A181ER-G - Torex - PCB symbol
click to zoom
PCB Footprints
XCL101A181ER-G - Torex PCB footprint - Other - Other - XCL101A181ER-G-2
click to zoom

XCL101A181ER-G Details

  • Manufacturer Part Number:

    XCL101A181ER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CL-2025-02, 8 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.7 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-XQCC-N8

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    1.836 V

  • Output Voltage-Min:

    1.764 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC8(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.04 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.55 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

XCL101A181ER-G Frequently Asked Questions (FAQs)

  • Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, placing decoupling capacitors close to the IC can help improve performance.
  • To ensure stability, it's essential to follow the recommended output capacitor selection and layout guidelines. A minimum output capacitance of 1uF is recommended, and the capacitor should be placed close to the IC. Additionally, the output voltage can be stabilized by adding a 10nF capacitor in parallel with the output capacitor.
  • The maximum ambient temperature range for XCL101A181ER-G is -40°C to +85°C. However, the device can operate up to +105°C with derating. It's essential to follow the thermal design guidelines and ensure proper heat dissipation to prevent overheating.
  • Yes, XCL101A181ER-G is suitable for high-reliability and automotive applications. Torex provides a range of reliability and quality certifications, including AEC-Q100, IATF 16949, and ISO 9001. However, it's essential to consult with Torex's sales team to ensure the specific requirements of your application are met.
  • To troubleshoot issues with XCL101A181ER-G, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure that the recommended layout guidelines are followed. Use an oscilloscope to monitor the output voltage and current. If the issue persists, consult Torex's application notes and technical support resources or contact their sales team for assistance.
