XCL101A381ER-G - Torex

Description: Ultra-compact step-up DC/DC converter with built-in inductor, 0.7–5.5V input, 1.8–5.0V output, 80mA load, 6.3μA Iq, PFM control, CL-2025 package.

Download XCL101A381ER-G Model

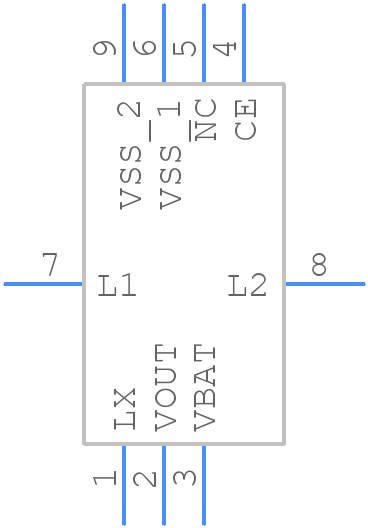

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
XCL101A381ER-G - Torex PCB footprint - Other - Other - CL-2025-02_2025-1.1
click to zoom

XCL101A381ER-G Details

  • Manufacturer Part Number:

    XCL101A381ER-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CL-2025-02, 8 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE FREQUENCY MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    0.7 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-XQCC-N8

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.1 A

  • Output Voltage-Max:

    3.876 V

  • Output Voltage-Min:

    3.724 V

  • Output Voltage-Nom:

    3.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC8(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.04 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    1200 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.55 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

XCL101A381ER-G Frequently Asked Questions (FAQs)

  • Torex provides a recommended PCB layout guidelines in their application notes, which include suggestions for component placement, trace routing, and thermal management to ensure optimal performance and reliability.
  • The output capacitor selection depends on the output voltage, output current, and ripple requirements. A general guideline is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 times the output voltage. Additionally, consider the capacitor's ESR, ESL, and ripple current ratings to ensure stable operation.
  • The maximum junction temperature (Tj) for the XCL101A381ER-G is 125°C. It's essential to ensure that the device operates within this temperature limit to prevent thermal damage and ensure reliability.
  • While the device can operate up to 125°C, it's essential to consider the derating curves provided in the datasheet. For high-temperature environments, consider using a heat sink or thermal management techniques to ensure the device operates within its specified temperature range.
  • The recommended input capacitor value is typically in the range of 1uF to 10uF, depending on the input voltage and current requirements. A low-ESR ceramic capacitor or a film capacitor is recommended to ensure stable operation.
