XCL101A501BR-G footprint, schematic symbol and 3D model by Torex

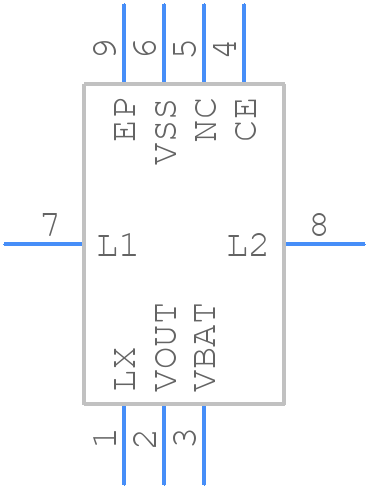

Symbol

click to zoom

PCB Footprints

XCL101A501BR-G - Torex PCB footprint - Other - Other - CL-2025_2025-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for XCL101A501BR-G
Part Number XCL101A501BR-G
Manufacturer Torex
Pin Count 9
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - CL-2025_2025-2
Released Date Dec 21, 2017
Last Modified Date Sep 29, 2025 4:52 PM UTC
Pinout / Pin List Click Here (Member Only)

XCL101A501BR-G Details

Manufacturer Part Number:
XCL101A501BR-G
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Torex Semiconductor LTD
YTEOL:
0
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE FREQUENCY MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
0.7 V
Input Voltage-Nom:
1.5 V
JESD-30 Code:
R-PDSO-N6
Length:
2.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
6
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.1 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
SON
Package Equivalence Code:
SOLCC6,.08,22
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.04 mm
Surface Mount:
YES
Switcher Configuration:
BOOST
Switching Frequency-Max:
1200 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Silver/Gold (Ni/Ag/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.55 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
10
Width:
2 mm

XCL101A501BR-G Frequently Asked Questions (FAQs)

A good PCB layout for XCL101A501BR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended capacitor values and types in the datasheet. Additionally, the output capacitor's ESR (Equivalent Series Resistance) should be within the recommended range. A soft-start circuit can also be implemented to reduce inrush current and ensure a stable output voltage.
The maximum ambient temperature range for XCL101A501BR-G is -40°C to 85°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.
Yes, XCL101A501BR-G is suitable for high-reliability applications. It's built with a robust design and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
To troubleshoot issues with XCL101A501BR-G, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure the device is operated within its specified parameters. Use an oscilloscope to analyze the output voltage and current waveforms. If the issue persists, consult the datasheet and application notes or contact Torex Semiconductor's technical support.
