Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The output capacitor selection depends on the output voltage, output current, and ripple requirements. Torex recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, and a voltage rating of at least 1.5 times the output voltage. Refer to the application note AN-104 for more details.
The maximum ambient temperature for XCL103D383CR-G is 85°C, but it can be derated to 70°C for high-reliability applications. Refer to the datasheet for thermal derating curves and guidelines.
Yes, XCL103D383CR-G is designed to withstand vibrations up to 10G (10Hz to 2kHz) and 6G (2kHz to 10kHz) according to the IEC 60068-2-6 standard. However, it's recommended to follow proper mounting and soldering techniques to ensure reliability.
Torex provides a troubleshooting guide in their application note AN-104, which covers common issues, symptoms, and solutions. Additionally, it's recommended to consult the datasheet and contact Torex's technical support team for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL103D383CR-G Overview

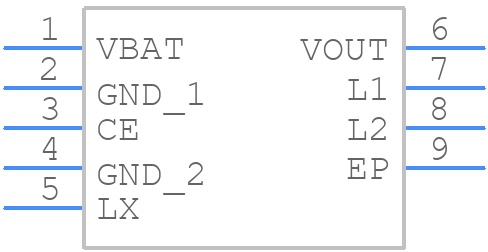

Use the download button to access the XCL103D383CR-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
