XCL103D533CR-G - Torex

Description: Switching Voltage Regulators Inductor Built-in Step-Up micro DC/DC Converter

Download XCL103D533CR-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

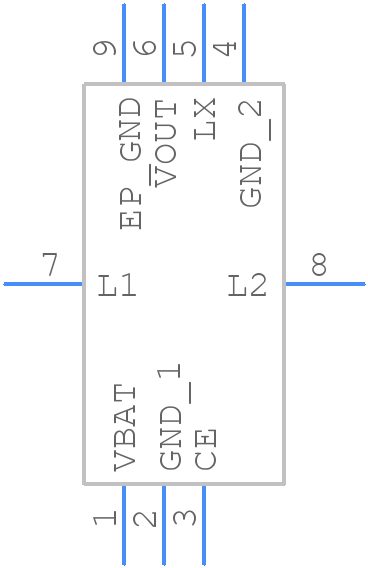

XCL103D533CR-G - Torex - PCB symbol
click to zoom
PCB Footprints
XCL103D533CR-G - Torex PCB footprint - Other - Other - XCL102D283CR-G-8
click to zoom
3D Models
XCL103D533CR-G - Torex - 3D model - Other - XCL102D283CR-G-8
click to zoom

XCL103D533CR-G Details

  • Manufacturer Part Number:

    XCL103D533CR-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CL-2025-02, 8 PIN

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Torex Semiconductor LTD

  • YTEOL:

    10

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    0.65 V

  • Input Voltage-Nom:

    1.5 V

  • JESD-30 Code:

    R-XQCC-N8

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.3 A

  • Output Voltage-Max:

    5.406 V

  • Output Voltage-Min:

    5.194 V

  • Output Voltage-Nom:

    5.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC8(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.04 mm

  • Supply Current-Max (Isup):

    3 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    3600 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.55 mm

  • Terminal Position:

    QUAD

  • Width:

    2 mm

XCL103D533CR-G Frequently Asked Questions (FAQs)

  • Torex provides a recommended PCB layout in their application note AN-104, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Torex recommends using a thermal pad or thermal via under the IC to improve heat dissipation. Additionally, ensure good airflow around the device, and consider using a heat sink or thermal interface material if necessary.
  • Although the datasheet doesn't specify a maximum voltage for the EN pin, Torex recommends keeping it within the VCC range (i.e., 2.5V to 5.5V) to ensure proper operation and prevent damage to the device.
  • While the XCL103D533CR-G is rated for operation up to 105°C, Torex recommends derating the output current and voltage according to the temperature derating curve provided in the datasheet to ensure reliable operation.
  • Torex provides a troubleshooting guide in their application note AN-103, which covers common issues and their possible causes, as well as recommended solutions and debugging techniques.
