A recommended PCB layout for the XCL105D501H2-G would be to keep the input and output capacitors as close to the IC as possible, and to use a solid ground plane to reduce noise and improve stability. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the output voltage traces away from the input voltage traces.
To ensure the XCL105D501H2-G operates within its recommended operating conditions, it's essential to follow the recommended voltage and current ratings, as well as the thermal management guidelines outlined in the datasheet. Additionally, it's crucial to provide adequate heat sinking and to avoid exceeding the maximum junction temperature (Tj) of 125°C.
Potential failure modes of the XCL105D501H2-G include overvoltage, undervoltage, overcurrent, and overheating. To mitigate these failure modes, it's recommended to implement overvoltage protection (OVP), undervoltage protection (UVP), and overcurrent protection (OCP) circuits, as well as to ensure proper thermal management and heat sinking.
The XCL105D501H2-G is a high-reliability device, but it's essential to follow the recommended design and testing guidelines to ensure it meets the required safety and reliability standards for your specific application. Additionally, it's recommended to consult with Torex Semiconductor LTD or a qualified reliability engineer to determine the suitability of the XCL105D501H2-G for your specific application.
To troubleshoot issues with the XCL105D501H2-G, it's recommended to follow a systematic approach, starting with a review of the datasheet and application notes. Check for proper PCB layout, component selection, and soldering quality. Use oscilloscopes and other diagnostic tools to identify voltage and current anomalies, and consult with Torex Semiconductor LTD or a qualified engineer if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL105D501H2-G Overview

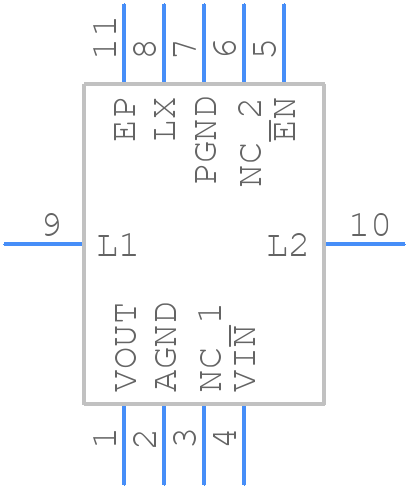

Use the download button to access the XCL105D501H2-G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL10,
or try a keyword search, such as Switching Regulator or Controllers
