Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane is recommended. Additionally, place the input and output capacitors close to the IC and use a thermal relief pattern for the GND pin.
To ensure stability, use a minimum output capacitance of 1uF with an ESR of 100mΩ or less. Additionally, place a 10nF to 100nF ceramic capacitor between the VOUT and GND pins to filter out high-frequency noise. Avoid using tantalum or electrolytic capacitors as they may cause oscillation.
The maximum ambient temperature for XCL201B331ER-G is 85°C. However, the device can operate up to 105°C with derating. Refer to the thermal derating curve in the datasheet for more information.
Yes, XCL201B331ER-G is suitable for high-reliability and automotive applications. It meets the AEC-Q100 standard and has been tested for robustness against environmental stresses such as temperature, humidity, and vibration.
To troubleshoot issues, first check the PCB layout and ensure it meets the recommended layout guidelines. Verify that the input and output capacitors meet the recommended specifications. Use an oscilloscope to check for oscillation or noise on the output voltage. If the issue persists, contact Torex Semiconductor's technical support team for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL201B331ER-G Overview

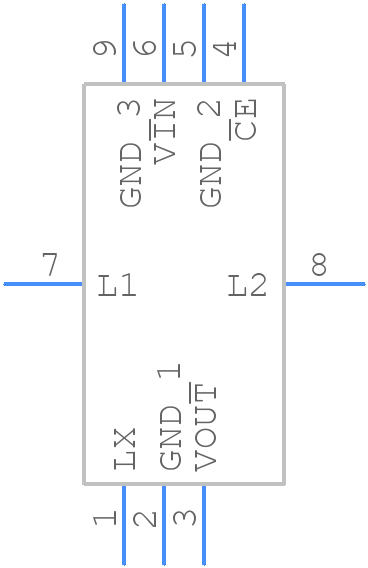

Use the download button to access the XCL201B331ER-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
