Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, it's essential to follow the datasheet's recommended pinout and layout guidelines.
To ensure the XCL205B123CR-G operates within its recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement over-voltage protection (OVP), under-voltage lockout (UVLO), and over-current protection (OCP) to prevent damage from voltage or current surges. Also, ensure the device is operated within its recommended temperature range (-40°C to 105°C).
Torex recommends using a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 1uF to 10uF for the input capacitor. The capacitor should be placed as close as possible to the VIN pin to reduce noise and improve stability.
To troubleshoot issues with the XCL205B123CR-G, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and input voltage for any signs of oscillation or noise. Consult the datasheet and application notes for troubleshooting guidelines and potential solutions.
Yes, the XCL205B123CR-G is compatible with lead-free soldering processes. Torex ensures that their devices meet the requirements of the RoHS (Restriction of Hazardous Substances) directive and are compatible with lead-free soldering temperatures up to 260°C.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL205B123CR-G Overview

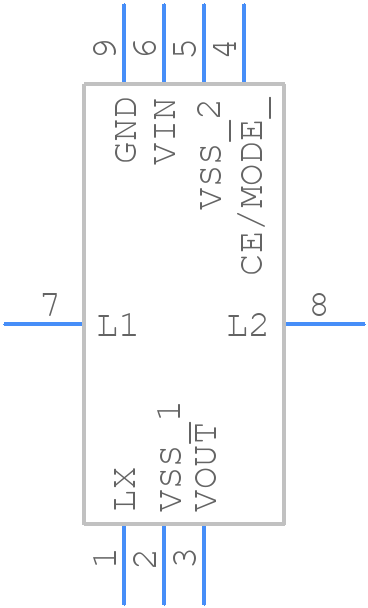

Use the download button to access the XCL205B123CR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
