A good PCB layout for XCL206A123CR-G involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the equivalent series resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
The maximum ambient temperature range for XCL206A123CR-G is -40°C to 85°C. However, the device can operate at a higher temperature range with derating. It is recommended to consult the datasheet for more information on temperature derating.
Yes, XCL206A123CR-G is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to consult the datasheet and application notes for more information on reliability and qualification.
To troubleshoot issues with XCL206A123CR-G, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, and ensure that the device is operated within the recommended temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL206A123CR-G Overview

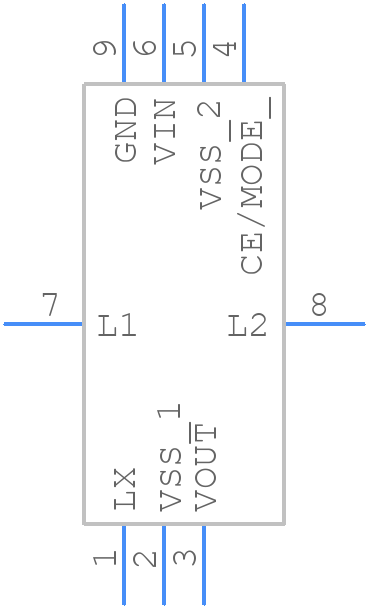

Use the download button to access the XCL206A123CR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
