Torex recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC, and the PCB should be designed to minimize noise and EMI.
To ensure stability, it's essential to follow the recommended capacitor values and types, and to place them close to the IC. Additionally, the input voltage should be well-regulated, and the PCB should be designed to minimize noise and EMI. A soft-start circuit can also be implemented to reduce inrush current and ensure a stable output voltage.
The maximum ambient temperature for XCL207A123CR-G is 85°C, but it's recommended to derate the output current and voltage according to the temperature derating curve provided in the datasheet to ensure reliable operation.
Yes, XCL207A123CR-G is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive and industrial applications. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
To troubleshoot issues with XCL207A123CR-G, start by checking the input voltage, output voltage, and output current. Verify that the capacitors are properly connected and meet the recommended values and types. Check for noise and EMI issues, and ensure the PCB is designed according to the recommended layout guidelines. If the issue persists, consult the datasheet and application notes, or contact Torex's technical support team for assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL207A123CR-G Overview

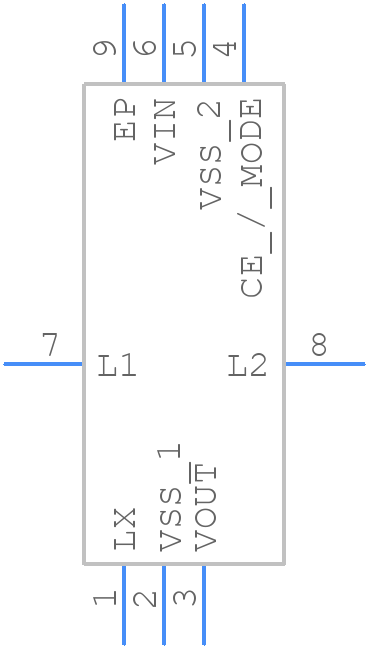

Use the download button to access the XCL207A123CR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
