Torex recommends a compact PCB layout with short traces and minimal vias to reduce parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Additionally, place the input and output capacitors close to the IC and use a thermal relief pattern for the GND pin.
To ensure stability, use a minimum output capacitance of 10uF with an ESR of 10mΩ or less. Additionally, place a 1uF ceramic capacitor in parallel with the output capacitor to improve high-frequency stability. Also, ensure that the input voltage is within the recommended range and the device is operated within the specified temperature range.
The maximum ambient temperature for XCL207A333CR-G is 85°C. However, the device can operate up to 105°C with a derated output current. Refer to the datasheet for the derating curve.
Yes, XCL207A333CR-G is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure high reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the reliability of the overall system.
To troubleshoot issues with XCL207A333CR-G, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the specified temperature range and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, contact Torex Semiconductor's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL207A333CR-G Overview

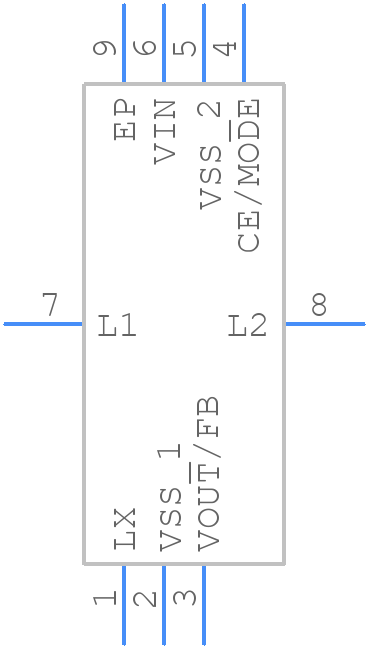

Use the download button to access the XCL207A333CR-G schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like XCL20,
or try a keyword search, such as Switching Regulator or Controllers
