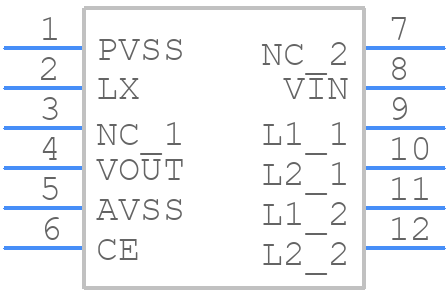

XCL208F083DR - Torex

XCL208F083DR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of XCL208F083DR?
  A good PCB layout for XCL208F083DR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
• How do I ensure the stability of the output voltage of XCL208F083DR?
  To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to keep the Equivalent Series Resistance (ESR) of the output capacitor below 1 ohm. Additionally, the input voltage should be stable and within the recommended range.
• What is the maximum ambient temperature range for XCL208F083DR?
  The maximum ambient temperature range for XCL208F083DR is -40°C to 85°C. However, the device can operate up to 105°C with a derated output current.
• Can I use XCL208F083DR in a high-reliability application?
  Yes, XCL208F083DR is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of automotive and industrial applications.
• How do I protect XCL208F083DR from overcurrent and overheating?
  XCL208F083DR has built-in overcurrent protection and thermal shutdown. However, it is recommended to add external protection such as fuses or PTC thermistors to prevent damage from excessive current or heat. Additionally, ensure good airflow and heat dissipation to prevent overheating.
