A good PCB layout for the XCL209A333DR should consider the following: keep the input and output capacitors close to the IC, use a solid ground plane, and minimize the length of the power traces. A 4-layer PCB with a dedicated power plane is recommended.
To ensure stable output voltage regulation, make sure to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a sufficient capacitance value (e.g., 10uF or higher). Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
While the datasheet specifies an operating temperature range of -40°C to 105°C, it's recommended to derate the device's performance at high temperatures. For reliable operation, it's suggested to keep the ambient temperature below 85°C to ensure optimal performance and longevity.
Yes, the XCL209A333DR is designed to be robust and can operate in high-vibration environments. However, it's essential to ensure that the PCB is properly secured and the components are well-soldered to prevent mechanical stress and damage.
To troubleshoot output voltage errors or instability, check the input voltage, output current, and output capacitor values. Ensure that the input voltage is within the recommended range, the output current is within the specified limit, and the output capacitor is suitable for the application. Also, verify that the PCB layout is correct and there are no noise or interference issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XCL209A333DR Overview

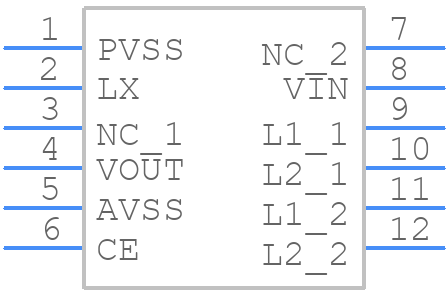

Use the download button to access the XCL209A333DR schematic symbol, PCB footprint, and 3D model.
